Performance of High-Speed Spindle Bearings
with Steel Balls
-
![Spindle Bearing B71908-C-2RSD-P4S-UL]()
Spindle Bearing B71908-C-2RSD-P4S-ULIt is suitable for high radial and axial loads in one direction.view more
Accuracy grade: high precision P2/P4S/P4/P5.
High speed: 15° and 25, special cage and optimized internal design make... -
![Spindle Bearing S7008CDGAP4A]()
Spindle Bearing S7008CDGAP4AIt is suitable for high radial and axial loads in one direction.view more
Accuracy grade: high precision P2/P4S/P4/P5.
High speed: 15°and 25°, special cage and optimized internal design make... -
![High Speed Spindle Bearings B7001-C-2RSD-T-P4S-UL]()
High Speed Spindle Bearings B7001-C-2RSD-T-P4S-ULHigh speed spindle bearings is suitable for high radial and axial loads in one direction.view more
Accuracy grade: high precision P2/P4S/P4/P5.
High speed: 15° and 25°, special cage and optimized... -
![High Speed Spindle Bearings B7002-C-2RSD-T-P4S-UL]()
High Speed Spindle Bearings B7002-C-2RSD-T-P4S-ULHigh speed spindle bearings are suitable for high radial and axial loads in one direction.view more
Accuracy grade: high precision P2/P4S/P4/P5.
High speed: 15° and 25°, special cage and... -
![Spindle Bearings B7010C-2RSD-T-P4S-UL]()
Spindle Bearings B7010C-2RSD-T-P4S-ULInside Ø (mm): 50view more
Outside Ø (mm): 80
Width (mm): 16
Contact Angle: 15°
Rows Of Balls: Single Row -
![CNC Router Spindle Bearing B7005-C-T-2RSD-P4S-UL]()
CNC Router Spindle Bearing B7005-C-T-2RSD-P4S-ULIt is suitable for high radial and axial loads in one direction.view more
Accuracy grade: high precision P2/P4S/P4/P5.
High speed: 15° and 25°, special cage and optimized internal design make... -
![Spindle Bearing B71919-E-T-P4S-UL]()
Spindle Bearing B71919-E-T-P4S-ULIt is suitable for high radial and axial loads in one direction.view more
Accuracy grade: high precision P2/P4S/P4/P5.
High speed: 15° and 25°, special cage and optimized internal design make... -
![Precision Bearings B7020-E-T-P4S-UL]()
Precision Bearings B7020-E-T-P4S-ULPrecision bearings is suitable for high radial and axial loads in one direction.view more
It has also an axial load carrying capacity on both sides in the X- or O-arrangement in pairs.... -
![Super Precision Bearings B71902-C-2RSD-T-P4S]()
Super Precision Bearings B71902-C-2RSD-T-P4SSuper precision bearings is suitable for high radial and axial loads in one direction.view more
Accuracy grade: high precision P2/P4S/P4/P5.
High speed 15° and 25°, special cage and optimized... -
![Spindle Bearing B7013-C-2RSD-T-P4S]()

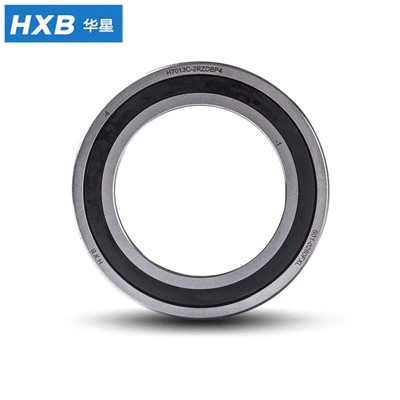

Spindle Bearing B7013-C-2RSD-T-P4SHigh precision bearing used for high speed electric spindles, wood carving machine, engraving machine, CNC router, CNC machine, machine tool spindle.view more -
![Precision Spindle Bearings B7014-E-T-2RSD-P4S-UL]()

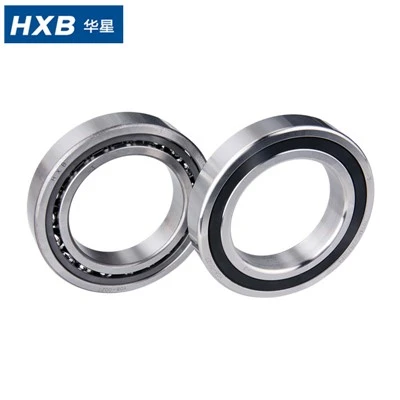

Precision Spindle Bearings B7014-E-T-2RSD-P4S-ULInside Ø (mm): 70view more
Outside Ø (mm): 110
Width (mm): 20
Contact Angle: 25°
Rows Of Balls: Single Row
Performance of High-Speed Spindle Bearings with Steel Balls
Speed Capability
The maximum speed of an all-steel bearing is limited by the centrifugal force acting on the steel balls. Being approximately 2.4 times heavier than silicon nitride ceramic balls, steel balls generate significantly higher centrifugal force at high rotational speeds, which increases the contact load on the outer raceway and sets a lower speed (dN value) limit compared with hybrid ceramic bearings.
Heat Generation and Temperature Rise
Steel-ball bearings produce higher friction and heat at high speeds, resulting in a more rapid temperature rise in the spindle. This can accelerate lubricant degradation, cause thermal expansion of the spindle, and adversely affect machining accuracy during prolonged high-speed operation.
Stiffness and Rigidity
All-steel bearings offer good stiffness and are well suited to heavy-load applications. However, at high speeds the reduction in effective stiffness due to centrifugal loading is more pronounced than with ceramic balls.
Load Capacity
Steel-ball bearings provide solid static and dynamic load capacity, making them a reliable and economical choice for moderate-speed and heavy-load applications.
Electrical Conductivity
Steel balls are electrically conductive. When used in motorized spindles or servo motors, shaft currents can pass through the bearing and cause electrical pitting (fluting / electric erosion) on the raceways, which shortens bearing life.
Lubrication Requirement
High-speed steel-ball bearings are more demanding in terms of lubrication. Oil-air or optimized grease lubrication and clean operating conditions are essential to prevent premature failure.
Service Life at High Speed
At high speeds, the combination of higher heat and higher internal loading shortens the fatigue life of steel-ball bearings compared with hybrid ceramic bearings.
Cost Advantage
Steel-ball bearings are considerably more economical, offering excellent value where speeds are moderate and cost is a priority.
Conclusion All-steel spindle bearings deliver reliable performance and the best cost-effectiveness for moderate-speed, heavy-load and non-electrical-insulation applications. Where ultra-high speed, continuous high-speed operation, low temperature rise, or electrical insulation is required, hybrid ceramic ball bearings are the recommended alternative.
Why Choose High-Speed Spindle Bearings with Steel Balls?
Technical Advantages
High Load Capacity
Steel balls provide excellent static and dynamic load ratings, making these bearings ideal for heavy cutting, milling and grinding applications where load is the priority.
01
High Fracture Toughness and Shock Resistance
Unlike ceramic balls, steel balls do not chip or crack under impact or shock loads. They are more forgiving in harsh operating conditions such as interrupted cutting, vibration and occasional overload.
02
Proven, Mature Technology
All-steel spindle bearings have decades of field-proven reliability across machine tools worldwide, with well-documented performance data and predictable service life.
03
Good Stiffness for Machining Accuracy
Precision grades (P4/P2) deliver high rigidity and stable running accuracy, ensuring consistent machining quality in a wide range of spindle designs.
04
Broad Speed Coverage
Steel-ball bearings fully cover the speed range required by the majority of standard machine tool spindles, offering reliable performance without over-engineering.
05
Standard Lubrication and Easy Maintenance
They work reliably with conventional grease and oil-air systems, requiring no special lubricants, and are simple to service and replace — minimizing downtime.
06
Wide Interchangeability
Standard dimensions and designs are directly interchangeable with industry-standard spindle bearings, simplifying sourcing, spares management and retrofit.
07
Core Selling Points (Commercial)
Significantly Lower Cost
Steel-ball bearings typically cost a fraction of hybrid ceramic versions, directly reducing spindle build and replacement costs.
Best Cost-Performance Ratio
For moderate-speed, heavy-load spindle applications, steel-ball bearings deliver the required performance at the lowest total cost of ownership.
Shorter Lead Times and Reliable Supply
As a mainstream product, all-steel spindle bearings are produced in high volumes, ensuring faster delivery and stable availability for your production schedule.
Lower Risk in Service
No special handling, installation or electrical concerns — the simplest, most robust choice for customers who value reliability and ease of use.
High-Speed Spindle Bearing Performance Comparison: Steel Balls vs. Hybrid Ceramic Balls
Legend: Steel-ball bearing | Hybrid ceramic-ball bearing | 1–5 scale, higher is better (Cost row: higher = more economical)
|
Performance Indicator |
Steel Balls |
Hybrid Ceramic |
|
Max Speed Capability |
3 |
5 |
|
High-Speed Heat Resistance |
2 |
5 |
|
Centrifugal-Force Stability |
2 |
5 |
|
Stiffness |
3 |
5 |
|
Electrical Insulation / Anti-Electric-Erosion |
1 |
5 |
|
High-Speed Fatigue Life |
3 |
5 |
|
Lubrication Tolerance |
3 |
4 |
|
Heavy-Load Capacity |
4 |
4 |
|
Cost-Effectiveness |
5 |
2 |
Recommended Applications
Steel-ball bearings are still suitable for: Moderate- and low-speed spindles · heavy-load conditions · cost-sensitive applications · applications without electric-erosion risk.
Hybrid ceramic balls are recommended for: Ultra-high-speed spindles · motorized spindles (to prevent shaft-current / electric erosion) · long continuous high-speed operation · where low temperature rise and high precision are required.
ndustrial Applications of High-Speed Spindle Bearings with Steel Balls
(Where steel-ball bearings are preferred over hybrid ceramic)
General-Purpose CNC Machine Tools
Conventional CNC milling and turning centers operating at moderate spindle speeds (up to approx. 10,000–15,000 rpm in typical designs)
Standard drilling and tapping machines where speed demand is within steel-ball capability
01
Heavy-Duty & Rough Machining
Heavy cutting, rough milling, deep-hole drilling and cast-iron/steel machining, where high load capacity matters more than maximum speed
Machine tools subject to shock loads and interrupted cuts, where steel's higher fracture toughness resists chipping — unlike brittle ceramic balls
02
Grinding Machines (Moderate Speed)
Cylindrical, surface and internal grinding spindles running within standard speed ranges
Applications where lower bearing cost keeps machine price competitive
03
Automotive & Engine Component Machining
Production lines for engine blocks, crankshafts and transmission parts, where heavy removal rates and reliability dominate
04
Woodworking & Stone Processing Machinery
High-torque spindles for routers, saws and grinders exposed to dust, vibration and impact — steel balls tolerate harsh service better
05
General Industrial Motors & Gearbox Shafts
High-speed electric motors, pumps, compressors and gearbox shafts where electrical insulation is not a concern
Applications where shaft currents are absent, so no hybrid ceramic is needed
06
Replacement & Retrofit Market
Direct drop-in replacements for standard spindle bearings in existing machines
Cost-driven maintenance and repair segments that prioritize availability and price
07
Key Differences vs. Hybrid Ceramic Bearings (Selection Guide)
|
Selection Factor |
Steel Ball Bearing |
Hybrid Ceramic Bearing |
|
Preferred speed range |
Moderate to high (standard range) |
Ultra-high speed |
|
Load & shock tolerance |
Excellent (tough, crack-resistant) |
Good (harder but more brittle) |
|
Electrical insulation |
Not required — normal motor applications only |
Required to prevent shaft-current erosion |
|
Temperature rise |
Acceptable at moderate speeds |
Minimal at ultra-high speeds |
|
Cost |
Low — best value |
High — premium performance |
|
Best suited for |
General, heavy-duty, cost-sensitive applications |
Continuous ultra-high-speed, high-precision, low-temperature-rise applications |
FAQ
Q1: Why can sealed full steel ball bearings maintain higher rigidity under cutting force?
A: It adopts DB/DT/QBC paired mounting and preload design to completely eliminate internal clearance. Meanwhile, the consistent material and integrated matching of all-steel rolling bodies and steel raceways realize uniform stress distribution. Different from hybrid ceramic bearings with different material properties of rolling bodies and raceways, the all-steel structure has better overall structural rigidity, smaller elastic deformation under strong cutting force and mechanical impact, and more stable spindle operation.
Q2: Are sealed steel ball spindle bearings inferior in speed performance to hybrid ceramic bearings?
A: Not in conventional working conditions. Matched with 15°/25° optimized contact angles and a special customized cage, this bearing achieves excellent stable high-speed performance suitable for most industrial precision machining. It does not pursue the extreme ultra-high-speed limit of ceramic bearings, but realizes a more balanced performance of speed, stability and service life. It avoids the problem that hybrid ceramic bearings are easy to have precision attenuation under long-term heavy-load speed operation.
Q3: What are the advantages of this sealed steel ball structure in terms of environmental adaptability and maintenance?
A: The integrated sealing structure perfectly matches the all-steel ball structure with consistent thermal expansion coefficient, which can effectively block cutting fluid, dust and machining impurities. Unlike hybrid bearings that are prone to seal gap changes and abnormal wear due to different thermal expansion of dissimilar materials, this product has stable sealing performance, low failure rate of impurity jamming and abnormal noise, and greatly reduces later maintenance frequency and use cost.
Q4: What precision grades are available for this sealed steel ball spindle bearing?
A: It supports multiple high-precision grades including P2/P4S/P4/P5. Relying on exclusive steel ball precision screening technology and ultra-fine raceway grinding process, it maintains long-term precision stability under heavy-load working conditions, which makes up for the defect that hybrid ceramic bearings are easy to have precision deviation after long-term heavy impact.
Hangzhou Huaxing Kechuang Holding Group Co., Ltd. is one of the leading manufacturers and suppliers of high speed spindle bearings in China, featured by quality products and good service. Please rest assured to buy bulk durable high speed spindle bearings from our factory. Welcome to view our website for more information.
