Hangzhou Huaxing Kechuang Holding Group Co., Ltd. is one of the leading manufacturers and suppliers of precision spindle bearings b7014-e-t-2rsd-p4s-ul in China. As we have world-leading production equipment and strong manufacturing capabilities, we warmly welcome you to buy bulk high quality bearings at competitive price from our factory.

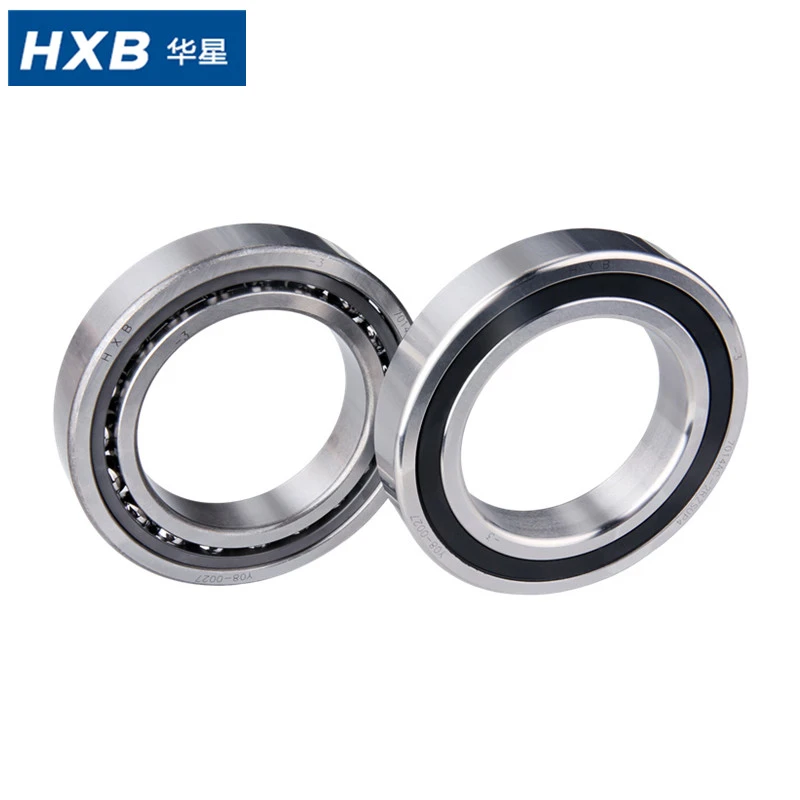

Precison Spindle Bearings-B7014-E-T-2RSD-P4S-UL
Also know as S7014ACDGAP4A
Technical Data
|
Inside Ø (mm): |
70 |
|
|
Outside Ø (mm): |
110 |
|
|
Width (mm): |
20 |
|
|
Contact Angle: |
25° |
|
|
Rows Of Balls: |
Single Row |
|
|
Seal: |
NBR |
|
|
Ring Material: |
GCr15, 100Cr6, SUJ2, X30 |
|
|
Rolling Element Material: |
Steel |
|
|
Cage Material: |
Polyamide |
|
|
Tolerance Class: |
P4S |
|
|
Lubrication: |
Greased with Lubcon L252 |
|
|
Type of lubrication: |
Grease |
|
|
Product weight: |
0.593 kg |
| Type | Dimensions | Abutment dimension | Load rating | Speed value | Weight | |||||||||
| mm | mm | N | r/min | (kg) | ||||||||||
| d | D | B | r(min) | r1(min) | Da | da | ra(max) | ra1(max) | Cr | Cor | Noil | Ngrease | ||
| H71914C-2RZ | 70 | 100 | 16 | 1.0 | 0.3 | 93.4 | 78.5 | 0.6 | 0.3 | 20900 | 17800 | 26000 | 16000 | 0.346 |
| H71914AC-2RZ | 100 | 16 | 1.0 | 0.3 | 93.4 | 78.5 | 0.6 | 0.3 | 19700 | 16900 | 20000 | 13000 | 0.346 | |
| H7014C-2RZ | 110 | 20 | 1.1 | 1.0 | 100.8 | 81.1 | 1.1 | 0.6 | 24100 | 21400 | 24000 | 15000 | 0.593 | |
| H7014AC-2RZ | 110 | 20 | 1.1 | 1.0 | 100.8 | 81.1 | 1.1 | 0.6 | 22600 | 20100 | 20000 | 13000 | 0.593 |
Applications
The 7014 series (7014C / 7014AC / B7014) high-precision angular contact bearings feature 70mm bore size, large load capacity and excellent high-speed thermal stability. They are widely applied in medium-large high-power CNC spindles, grinding spindles and industrial high-speed rotary spindles. Below are the fully compatible mainstream spindle models sorted by equipment category:
1. CNC Milling & Machining Center Spindles
BT40 / BT50 high-speed machining center spindles, vertical machining center (VMC) spindle units, horizontal machining center (HMC) built-in motor spindles, mold high-speed milling spindles, heavy-duty cutting CNC spindle assemblies. Suitable for 8000–12000rpm long-cycle high-load processing scenarios.
2. High-Precision Grinding Machine Spindles
Internal grinding machine high-frequency spindles, external cylindrical grinding spindles, tool grinding machine spindles, surface grinding machine precision rotary spindle units. The 7014 bearing's ultra-low runout performance ensures ultra-fine grinding surface finish and dimensional accuracy.
3. Drilling & Tapping Machine Spindles
High-speed drilling and tapping machine servo spindles, multi-axis drilling spindle units, automated production line dedicated high-speed rotary spindles. It adapts to frequent start-stop and continuous high-temperature operating conditions with stable anti-fatigue performance.
4. Industrial High-Frequency Built-In Motor Spindles
1.5kW–7.5kW high-power built-in motor spindles, water-cooled high-speed spindle units for metal processing, oil-air lubrication industrial spindle systems. Matches the 7014 series' high-temperature resistance and high-speed dynamic stability.
5. Special Precision Equipment Spindles
Precision rotary table main shafts, industrial robot joint high-load rotary units, high-power compressor rotary spindles, large automated precision finishing equipment spindles.
6. Matched Precision Bearing Configuration Features
7014 series bearings are commonly configured with DBL back-to-back pairing and DT tandem pairing for medium and high rigidity spindle systems. With upgraded high-temperature clearance and heat-resistant accessories, they solve thermal expansion jitter and precision attenuation problems of large-bore spindle bearings, serving as the core upgrade replacement for medium-large high-speed machine tool spindles.
Advantages
HXB was founded in 1995, with nearly 30 years of dedicated development, HXB now operates6 subsidiaries.
∗ 2 high-tech R&D centers
∗ 2 modern manufacturing factories - Hangzhou Yijia Precision Bearing Co., Ltd. and Zhejiang Ruiyang Bearing Technology Co., Ltd.
∗ Supported by advanced digital MES and SPC management systems
∗ IATF16949:2016, ISO9001:2015 and ISO14001 certifications
∗ High-end equipment and high-quality material
Certificates
Exhibition
FAQ
Q1: How long has your factory been manufacturing bearings? A: We have more than 30 years of professional bearing manufacturing experience, starting from deep groove ball bearing production and expanding to high-precision and new energy bearing fields.
Q2: How do you guarantee bearing quality consistency?
A: We implement full-process quality control, including incoming material inspection, in-process dimensional monitoring, noise testing, precision detection and final batch sampling inspection.
Q3: Can your bearings work in high temperature or low temperature environments?
A: Our bearings support wide temperature adaptation. With special heat-resistant grease and stable material properties, they perform stably in both high-heat and low-temperature working scenarios.
Q4: Do you offer wholesale discounts for bulk orders?
A: We provide competitive wholesale prices for bulk purchases. Please email us your order quantity for a custom quotation.
Q5: What if I receive damaged goods?
A: Please send clear photos of damaged products and packaging within 48 hours of receipt. We will offer free reshipment or full refund without return.
