Hangzhou Huaxing Kechuang Holding Group Co., Ltd. is one of the leading manufacturers and suppliers of cnc router spindle bearing b7005-c-t-2rsd-p4s-ul in China. As we have world-leading production equipment and strong manufacturing capabilities, we warmly welcome you to buy bulk high quality bearings at competitive price from our factory.

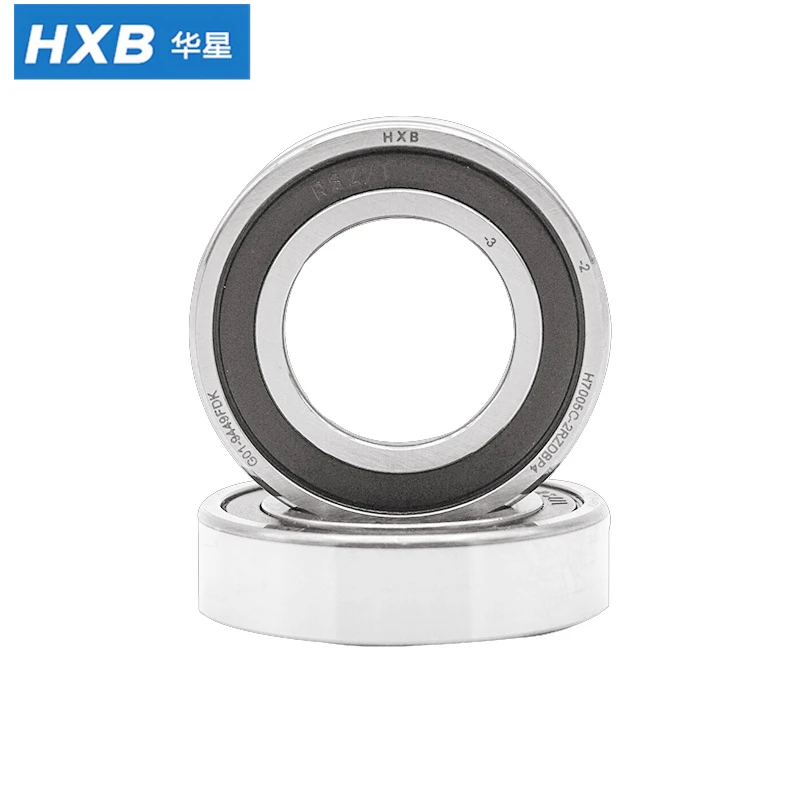

CNC Router Spindle Bearing-H7005C-2RZDB/DTP4

Also know as S7005CDP4A, B7005-C-2RSD-T-P4S-DB, KH6005CTAP4DT

• Hierarchical and High Adaptability: Full-series bearings covering entry-level, industrial and precision grades support flexible selection according to equipment speed, load and accuracy requirements, perfectly matching CNC Routers of various positioning grades.
• Excellent Combined Load Capacity: Spindle angular contact bearings withstand composite radial and bidirectional axial loads. Matched with DB pairing structure, they deliver outstanding anti-overturning and anti-vibration performance, adapting to complex stress conditions of carving, cutting and milling.
• High Speed and Low Temperature Rise: P4/P5 precision bearings and hybrid ceramic bearings feature ultra-low friction coefficient, stable temperature rise during long-term high-speed operation and no thermal deformation, ensuring persistent equipment accuracy stability.
• Dust Resistance and High Durability: Fully sealed structure adapts to harsh dusty working conditions of woodworking and advertising processing, effectively resisting pollution and wear, reducing equipment failure rate and maintenance costs.
• Standardized Modular Matching: Mature and standardized pairing schemes with adjustable preload and controllable accuracy, facilitating mass production, assembly debugging and later replacement & maintenance.

For Example

HX7005CTA-2RZHQDB/DTP4

• H: ultra-high speed
• X: X30 material
• C: 15°
• T: phenolic resin
• A: outer ring guided
• 2RZ: double non-contact rubber seals
• HQ1: roller Si3N4
• DB/DT: match
• L: light preload

• Precision High-speed CNC Router: Equipped with 719-series P4 precision bearings or hybrid ceramic bearings. Suitable for precision mold carving, light aluminum alloy milling and acrylic high-gloss processing. It supports high-speed processing above 20000 r/min with ultra-small spindle runout and excellent finished surface smoothness.
• Heavy-duty Industrial CNC Router: Adopts DT tandem bearing combination. Ideal for thick wood board cutting, density board batch processing and heavy-duty plate grooving, capable of resisting heavy load impact and maintaining zero accuracy attenuation during long-term continuous operation.
• Automatic Batch Processing Equipment: Equipped with fully standardized paired bearings and precision preload assembly technology. Suitable for factory assembly line batch carving and cutting, featuring high operational stability and long maintenance cycle, ensuring consistent batch processing quality.

∗ 30 years of dedicated development

HXB was founded in 1995, with nearly 30 years of dedicated development, HXB now operates6 subsidiaries.



∗ 2 high-tech R&D centers

∗ 2 modern manufacturing factories - Hangzhou Yijia Precision Bearing Co., Ltd. and Zhejiang Ruiyang Bearing Technology Co., Ltd.

∗ Supported by advanced digital MES and SPC management systems

∗ IATF16949:2016, ISO9001:2015 and ISO14001 certifications

∗ High-end equipment and high-quality material

1. Hangzhou Factory - YJB

Founded in June 2007, YJB is located in Hangzhou. As a subsidiary of HXB Group, we are a national high-tech enterprise and provincial science & technology enterprise specializing in R&D and manufacturing of high-precision, high-speed, advanced, special and professional bearings.

• Product Size: Inner diameter Φ3–Φ300mm
• Precision Classes: P2, P4 (ultra-precision grades)
• Annual Capacity: 3 million sets of precision bearings in a lean & intelligent factory

2. Huzhou Factory

In 2021, the deep groove ball bearing factory relocated from Hangzhou to Huzhou. It operate in a 10,000㎡ production facility with a team of 75 employees, focused on the R&D, and manufacturing of high-performance deep groove ball bearings.

Quality Team: 15 quality personnel, including 2 quality engineers, 20% of staff, covering incoming inspection, in-process control and final testing.

CNC Router core bearings are dominated by high-speed spindle rotary bearings. As core precision components, they undertake spindle rotary movement, ensure machining accuracy, rotational stability and service life, and adapt to high-speed operation of spindles under various working conditions.

1. Spindle Rotary Bearings (Core Precision Components)

These bearings mainly bear combined radial and axial loads during high-speed spindle operation and suppress high-speed runout and vibration, which determine the machining accuracy and speed limit of equipment. Precision angular contact ball bearings are the mainstream choice, while standard deep groove ball bearings are applied to low-speed auxiliary structures.

Precision Angular Contact Ball Bearings (Mainstream Standard Configuration): 7002AC, 7004AC, 7005AC, 71904ACD, 71905ACD (P4/P5 precision grade). Suitable for most high-speed CNC spindles, capable of bearing bidirectional axial and radial loads, serving as the core bearings for high-speed finishing machines. The 719 series thin-walled bearings adapt to high-speed and compact spindle structures, while the 700 series features stronger universality with balanced load capacity and speed performance.

Hybrid Ceramic Bearings (High-end Configuration): 7004/7005 hybrid ceramic ball bearings with steel rings and ceramic rolling elements. Featuring low heat generation, high speed, wear resistance and low thermal expansion, they adapt to ultra-high-speed spindles above 18000 r/min, widely used in high-precision mold carving and fine light metal milling equipment.

2. Matching Methods for Angular Contact Spindle Bearings

DB Back-to-Back Matching (Mainstream Standard): The most widely used solution. Two bearings are installed with their large end faces opposite, featuring large support span, high rigidity and excellent anti-overturning moment performance. It effectively suppresses spindle runout during high-speed operation, suitable for all medium and high-speed CNC Router spindles with balanced radial and axial stability. Preload can be finely adjusted via gaskets to eliminate internal clearance during assembly.

DF Face-to-Face Matching: Two bearings are installed with their small end faces opposite, featuring uniform stress and low noise. However, it has weak anti-overturning capacity, only applicable to low-speed and light-load wood carving machines, not for heavy-load and high-speed milling scenarios.

DT Tandem Matching: Multiple bearings are installed in the same direction with greatly enhanced axial load capacity. Suitable for heavy-duty CNC Router spindles for thick material cutting and deep groove carving.

3-set/4-set Combined Matching: Exclusive for high-end precision machines. The combined DB+DT structure achieves high rigidity, high speed and high load resistance simultaneously, meeting the high-precision and high-stability requirements of continuous processing.

3. Matching Methods for Angular Contact Spindle Bearings

DB Back-to-Back Matching (Mainstream Standard): The most widely used solution. Two bearings are installed with their large end faces opposite, featuring large support span, high rigidity and excellent anti-overturning moment performance. It effectively suppresses spindle runout during high-speed operation, suitable for all medium and high-speed CNC Router spindles with balanced radial and axial stability. Preload can be finely adjusted via gaskets to eliminate internal clearance during assembly.

DF Face-to-Face Matching: Two bearings are installed with their small end faces opposite, featuring uniform stress and low noise. However, it has weak anti-overturning capacity, only applicable to low-speed and light-load wood carving machines, not for heavy-load and high-speed milling scenarios.

DT Tandem Matching: Multiple bearings are installed in the same direction with greatly enhanced axial load capacity. Suitable for heavy-duty CNC Router spindles for thick material cutting and deep groove carving.

3-set/4-set Combined Matching: Exclusive for high-end precision machines. The combined DB+DT structure achieves high rigidity, high speed and high load resistance simultaneously, meeting the high-precision and high-stability requirements of continuous processing.
