Hangzhou Huaxing Kechuang Holding Group Co., Ltd. is one of the leading manufacturers and suppliers of high speed spindle bearings b7001-c-2rsd-t-p4s-ul in China. As we have world-leading production equipment and strong manufacturing capabilities, we warmly welcome you to buy bulk high quality bearings at competitive price from our factory.

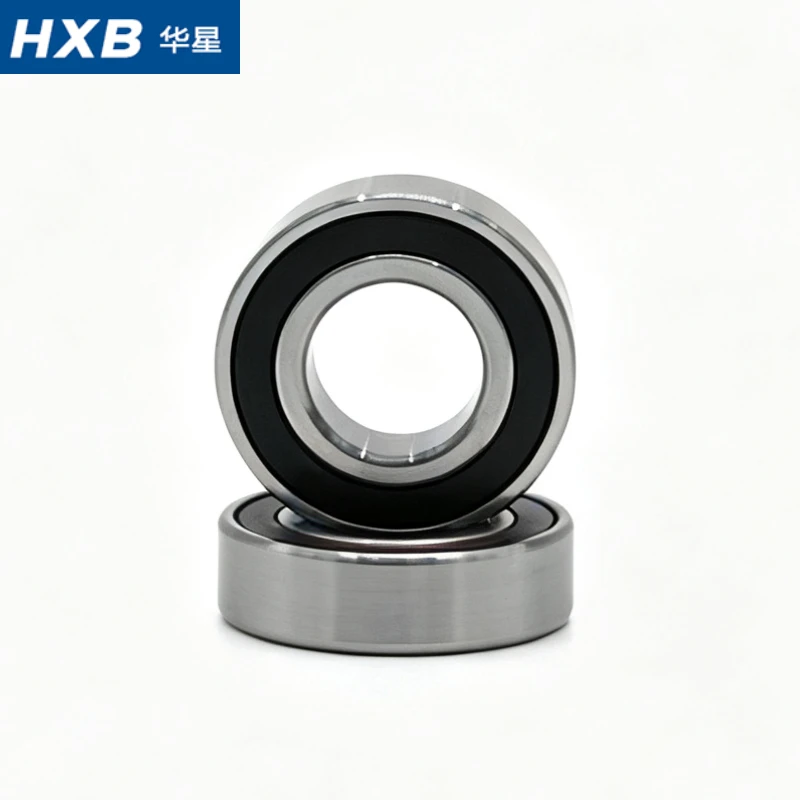

High Speed Spindle Bearings-S7001CDGAP4A
Also know as H7001C-2RZSULP4, B7001C-2RSD-T-P4S-UL, KH6001CTAP4
Technical Data
|
Inside Ø (mm): |
12 |
 |
|
Outside Ø (mm): |
28 |
|
|
Width (mm): |
8 |
|
|
Contact Angle: |
15° |
|
|
Rows Of Balls: |
Single Row |
|
|
Seal: |
NBR |
|
|
Ring Material: |
GCr15, 100Cr6, SUJ2, X30 |
|
|
Rolling Element Material: |
Steel |
|
|
Cage Material: |
Phenolic Resin |
|
|
Tolerance Class: |
P4S |
|
|
Lubrication: |
Greased with Lubcon L252 |
|
|
Type of lubrication: |
Grease |
|
|
Product weight: |
0.02 kg |
|
Type |
Dimensions |
Abutment dimension |
Load rating |
Speed value |
Weight |
|||||||||
|
mm |
mm |
N |
r/min |
(kg) |
||||||||||
|
d |
D |
B |
r (min) |
r1 (min) |
Da |
da |
ra (max) |
ra1 (max) |
Cr |
Cor |
Noil |
Ngrease |
||
|
H708C-2RZ |
8 |
22 |
7 |
0.3 |
0.3 |
19 |
10.5 |
0.3 |
0.1 |
1550 |
1100 |
140000 |
85000 |
0.01 |
|
H 71900C-2RZ |
10 |
22 |
6 |
0.3 |
0.3 |
18.5 |
13.3 |
0.3 |
0.1 |
2100 |
900 |
140000 |
85000 |
0.01 |
|
H71900AC-2RZ |
22 |
6 |
0.3 |
0.3 |
18.5 |
13.3 |
0.3 |
0.1 |
2000 |
900 |
120000 |
75000 |
0.01 |
|
|
H7000C-2RZ |
26 |
8 |
0.3 |
0.3 |
21.3 |
14.2 |
0.3 |
0.1 |
3400 |
1500 |
130000 |
80000 |
0.018 |
|
|
H7000AC-2RZ |
26 |
8 |
0.3 |
0.3 |
21.3 |
14.2 |
0.3 |
0.1 |
3300 |
1400 |
110000 |
67000 |
0.018 |
|
|
H71901C-2RZ |
12 |
24 |
6 |
0.3 |
0.3 |
20.3 |
15.1 |
0.3 |
0.1 |
2200 |
1100 |
130000 |
80000 |
0.011 |
|
H71901AC-2RZ |
24 |
6 |
0.3 |
0.3 |
20.3 |
15.1 |
0.3 |
0.1 |
2100 |
1100 |
110000 |
70000 |
0.011 |
|
|
H7001C-2RZ |
28 |
8 |
0.3 |
0.3 |
23.3 |
16.2 |
0.3 |
0.1 |
3800 |
1700 |
110000 |
70000 |
0.024 |
|
|
H7001AC-2RZ |
28 |
8 |
0.3 |
0.3 |
23.3 |
16.2 |
0.3 |
0.1 |
3600 |
1600 |
90000 |
60000 |
0.02 |
|
Features
- High speed spindle bearings is suitable for high radial and axial loads in one direction.
- Accuracy grade: high precision P2/P4S/P4/P5.
- High speed: 15° and 25°, special cage and optimized internal design make higher speed.
- High rigidity: mounted in pairs (DB/DT/QBC) with preload to eliminate clearance, resists deformation under cutting forces.
Applications
High speed electric spindles, wood carving machine, engraving machine, CNC router, CNC machine, machine tool spindle
Material of Bearing Components
The high speed spindle bearing is a specially designed angular contact ball bearing consisting of an inner ring. An outer ring, a cage, a set of rolling elements and optional grease and seals. According to the customer's use and working conditions, we will provide the corresponding parts materials to achieve the best performance of the bearing.
- Seals: non-contact rubber seals on both sides
- Balls: G5 steel ball
- Rings: OVAKO Sweden steel
- Cages: phenolic resin or polyamide
- Grease: Lubcon or Klueber
Advantages
HXB was founded in 1995, with nearly 30 years of dedicated development, HXB now operates6 subsidiaries.
∗ 2 high-tech R&D centers
∗ 2 modern manufacturing factories - Hangzhou Yijia Precision Bearing Co., Ltd. and Zhejiang Ruiyang Bearing Technology Co., Ltd.
∗ Supported by advanced digital MES and SPC management systems
∗ IATF16949:2016, ISO9001:2015 and ISO14001 certifications
∗ High-end equipment and high-quality material
About HXB
1. Hangzhou Factory - YJB
Founded in June 2007, YJB is located in Hangzhou. As a subsidiary of HXB Group, we are a national high-tech enterprise and provincial science & technology enterprise specializing in R&D and manufacturing of high-precision, high-speed, advanced, special and professional bearings.
Core Capabilities & Intelligent Manufacturing
- Product Size: Inner diameter Φ3–Φ300mm
- Precision Classes: P2, P4 (ultra-precision grades)
- Annual Capacity: 3 million sets of precision bearings in a lean & intelligent factory
- Equipment Investment: Over RMB 3 million in world-leading precision testing instruments
- Digital Transformation: with full deployment of MESYS bearing design platform, ERP, MES, WMS, SPC real-time quality monitoring and OA systems, building a benchmark smart manufacturing plant.
Main Products
Precision Spindle Bearings
Angular Contact Ball Bearings
Servo Motor Bearings
Vacuum Pump Bearings
Ball Screw Support Bearings
2. Huzhou Factory
In 2021, the deep groove ball bearing factory relocated from Hangzhou to Huzhou. It operate in a 10,000㎡ production facility with a team of 75 employees, focused on the R&D, and manufacturing of high-performance deep groove ball bearings.
We maintain a professional engineering and quality system to ensure stable precision and reliability.
Engineering Team: 4 bearing design & process engineers, accounting for 5% of staff.
Quality Team: 15 quality personnel, including 2 quality engineers, 20% of staff, covering incoming inspection, in-process control and final testing.
Certificates
Exhibition
FAQ
Q1: Are you a factory or trading company?
A: We are factory specialized in manufacturing and exporting bearings.
Q2:What's the lead time of delivery?
A: Usually 30 days for normal bearings, even short than 2 weeks. For customized products, 60 days is needed.
Q3:What payment methods do you accept?
A: We accept T/T, L/C etc.
Q4: Why is my payment declined?
A: Payments may fail due to insufficient balance, bank fraud protection, expired cards or address mismatches. Please try another payment method or contact your bank for help.
Q5: Why is my payment declined?
A: Payments may fail due to insufficient balance, bank fraud protection, expired cards or address mismatches. Please try another payment method or contact your bank for help.
Q6: What if I receive damaged goods?
A: Please send clear photos of damaged products and packaging within 48 hours of receipt. We will offer free reshipment or full refund without return.
Q7: What is your return policy?
A: Within the valid warranty period, if the product fails to meet the stipulated quality standards or cannot work normally due to inherent manufacturing quality problems (excluding human damage and improper use), the product shall be covered by free warranty service.
Slope Design
ultra-precision spindle bearings are divided into B-series, HCB-series and HCS-series with distinct inner/outer ring slope (chamfer) structures, which fundamentally determine lubrication compatibility, speed threshold and application scenarios:
B Series (Full Steel Ball Standard Spindle Bearing):Inner ring with slope, outer ring without slope. Standard large ball structure, classic high-rigidity spindle design.
HCB Series (Hybrid Ceramic Ball Standard Speed): Both inner and outer rings with slope. Ceramic ball rolling body, standard high-speed structure.
HCS Series (Hybrid Ceramic Ball Ultra-High Speed): Both inner and outer rings with slope. Optimized small ball + special raceway design, ultra-low friction and extreme speed-oriented structure.
Oil mist lubrication priority: B series -- The outer ring no-slope open structure solves the oil accumulation and overheating problems of double-slope bearings, with the most stable lubrication circulation and the lowest long-term operating temperature.
Conventional high-speed oil-gas lubrication: HCB series -- Balanced speed and rigidity, excellent thermal stability.
Oil mist lubrication priority: B series -- The outer ring no-slope open structure solves the oil accumulation and overheating problems of double-slope bearings, with the most stable lubrication circulation and the lowest long-term operating temperature.
Conventional high-speed oil-gas lubrication: HCB series -- Balanced speed and rigidity, excellent thermal stability.
Ultra-high-speed light-load finishing oil-gas lubrication: HCS series -- Extreme speed performance, ultra-low friction and precision attenuation.
