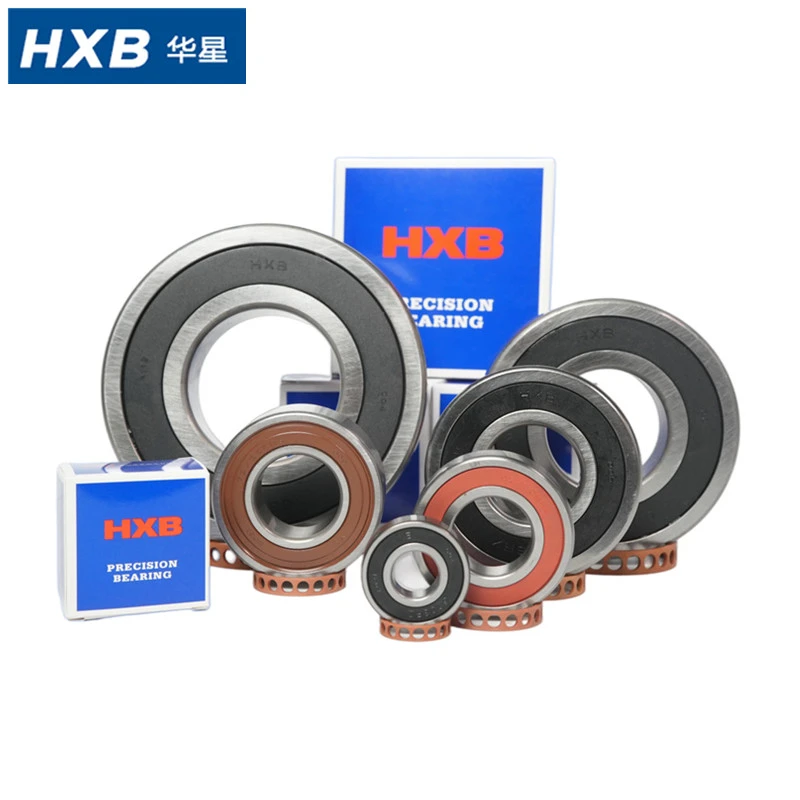

Motorcycle Bearings 6200-2RS 6201-2RS 6202-2RS

Hangzhou Huaxing Kechuang Holding Group Co., Ltd. is one of the leading manufacturers and suppliers of motorcycle bearings 6200-2rs 6201-2rs 6202-2rs in China. As we have world-leading production equipment and strong manufacturing capabilities, we warmly welcome you to buy bulk high quality bearings at competitive price from our factory.



Motorcycle Bearings 6200-2RS, 6201-2RS, 6202-2RS





Bearing Type:	Deep groove ball bearing
Material:	Chrome steel GCr15, SAE52100, SUJ2
Seals:	Rubber seals on both side
Retainer:	Steel
Grease:	Normal grease
Radial Internal clearance:	C0/C3/C4
Vibration:	ZV1, ZV2, ZV3, ZV4
Precision:	Standard Precision P0, P6, P5
Brand:	HXB or OEM brand





Bearing Material – Ring & Rolling Element Raw Material

Bearing rings and rolling elements are generally manufactured from high-carbon chromium bearing steel GCr15 (see Table 1 above).

The chemical composition of GCr15 has internationally equivalent standardized counterparts, including AISI 52100 (USA), DIN 100Cr6 (Germany) and SUJ2 (Japan).

The table lists the main chemical element composition ranges of this high-carbon chromium bearing steel series.



Table 1 Chemical Composition of High Carbon Chromium Bearing Steel (For Bearing Rings & Rolling Balls)

Standard No.	Steel Grade	C (wt%)	Si (wt%)	Mn (wt%)	S (wt%)	P (wt%)	Cr (wt%)	Mo (wt%)
GB/T18254	GCr15	0.95–1.05	0.15–0.35	0.25–0.45	≤0.025	≤0.025	1.40–1.65	-
JIS G4805	SUJ2	0.95–1.10	0.15–0.35	≤0.50	≤0.025	≤0.025	1.30–1.60	≤0.080
ASTM A295	52100	0.98–1.10	0.15–0.35	0.25–0.45	≤0.025	≤0.025	1.30–1.60	≤0.100



Table 2 Chemical Composition of Steel Sheet for Stamped Bearing Cages

Component Application	Standard No.	Steel Grade	C (wt%)	Si (wt%)	Mn (wt%)	P (wt%)	S (wt%)
Steel Sheet for Stamped Bearing Cages	JIS G3141	SPCC	≤0.12	-	≤0.50	≤0.040	≤0.045







All our motorcycle bearings adopt professional deep groove ball structure, which is specially optimized and upgraded for the unique working conditions of motorcycles such as frequent start-stop, bumpy road conditions, variable load and long-distance driving. Different from industrial standard bearings, these bearings focus on shock resistance, dust and water proof, flexible rotation and long-term stability. They are dedicated to motorcycle full vehicle matching, covering engine, wheel, transmission and auxiliary rotating parts, and fully meet the daily commuting and long-distance riding operation requirements of various motorcycles.



1. Excellent Shock Resistance and Variable Load Adaptability Motorcycles are often driven on bumpy, uneven roads and bear instantaneous impact load during riding. Our deep groove ball bearings feature a reasonable raceway structure and uniform ball stress distribution, which can effectively buffer instantaneous vibration and impact force. They stably bear alternating radial and slight axial loads during driving, avoid rolling element wear and bearing failure caused by road shock, and ensure smooth and stable rotation of motorcycle rotating parts.

2. Reliable Dustproof and Waterproof Protection for Road Conditions Customized sealed and shielded structures are adopted for motorcycle dedicated deep groove ball bearings, which can effectively isolate road dust, sand, rainwater and mud splashes. The tight sealing design locks internal high-performance lubricating grease stably, prevents grease leakage, dry friction and internal corrosion caused by external moisture and impurities. It solves the common problems of bearing rust, jamming and abnormal noise in outdoor riding and complex road environments, greatly improving environmental adaptability.







Our standard deep groove ball bearings cover most mainstream motorcycle brands and models worldwide, widely used for engine crankshaft, transmission, front/rear wheel hub and swing arm rotation parts. The detailed compatible models are classified by brand as below:

1. Honda Series Compatible with mainstream Honda scooter and street bike models, including Wave125, Supra Fit, Mega Pro, Karisma, Revo, Blade 110/125, Sonic, CB100, CB125, GL100, GL125, CBR150R, Astrea Star and other classic and daily commuter models. Fully adapt to the daily riding and continuous working conditions of Honda civilian motorcycles.

2. Yamaha Series Perfectly matched with Yamaha scooter and leisure motorcycle series, including Qiaoge i125, Fuxi AS, Saiying, Xuying, Fuying 125, Jupiter Z110, Alfa, Champ, FIZR and other 110cc–150cc displacement models. The sealed deep groove ball structure suits Yamaha urban commuter scooters' low noise and stable operation requirements.

3. Suzuki Series Applicable to Suzuki AX100, Thunder125, WY125, GN125 and other classic street bikes and economical models. The shock-resistant and wear-resistant performance effectively copes with frequent start-stop and complex road conditions of Suzuki practical motorcycles.

4. Kawasaki Series Compatible with Kawasaki entry-level civilian models such as ZX130, suitable for daily commuting and light-duty riding scenarios, providing stable rotating support for Kawasaki small-displacement motorcycles.

5. Universal Global General Models Covers most public motorcycle models in the market: T110, TIGER125, SR125/SR150, SUPRA, SMASH110, SPRINTER, SPLENDOR, TDR250 and other 100cc–250cc mainstream displacement motorcycles. It supports full-scene matching of economical street bikes, urban scooters and light off-road motorcycles.





Founded in 1995, HXB Bearing has specialized in the R&D and manufacturing of precision bearings for nearly 30 years. The group operates six wholly-owned subsidiaries, alongside two high-tech R&D centers and two modern intelligent manufacturing bases: Hangzhou Yijia Precision Bearing and Zhejiang Ruiyang Bearing. The whole production line adopts MES digital manufacturing systems and SPC real-time quality monitoring systems. It has obtained three major international system certifications: ISO9001:2015, IATF16949:2016 and ISO14001. Its core products include Class P2/P4 precision spindle bearings, angular contact ball bearings and servo motor bearings. The annual output of precision bearings at the Hangzhou intelligent plant reaches 3 million sets. Products are exported to the United States, Japan, South Korea, India and other countries, serving well-known industrial brands including Siemens, John Deere and Lenz on a long-term basis. Customized non-standard bearing development based on drawings or samples is available.









∗ 2 modern manufacturing factories - Hangzhou Yijia Precision Bearing Co., Ltd. and Zhejiang Ruiyang Bearing Technology Co., Ltd.

∗ Supported by advanced digital MES and SPC management systems





∗ IATF16949:2016, ISO9001:2015 and ISO14001 certifications

∗ High-end equipment and high-quality material















Bearing Number	Boundary Dimensions (mm)				Load Rating (KN)		Limiting Speed (rpm)		Weight (kg)
	d	D	B	rmin	Cr	Cor	Grease	Oil
6000	10	26	8	0.3	4.55	1.96	29000	34000	0.019
6200		30	9	0.6	5.10	2.39	25000	30000	0.032
6300		35	11	0.6	8.20	3.50	23000	27000	0.052
6001	12	28	8	0.3	5.10	2.39	26000	30000	0.022
6201		32	10	0.6	6.10	2.75	22000	26000	0.035
6301		37	12	1.0	9.70	4.20	20000	24000	0.051
6002	15	32	9	0.3	5.60	2.84	22000	26000	0.031
6202		35	11	0.6	7.75	3.60	19000	23000	0.045
6302		42	13	1.0	11.40	5.45	17000	21000	0.080
