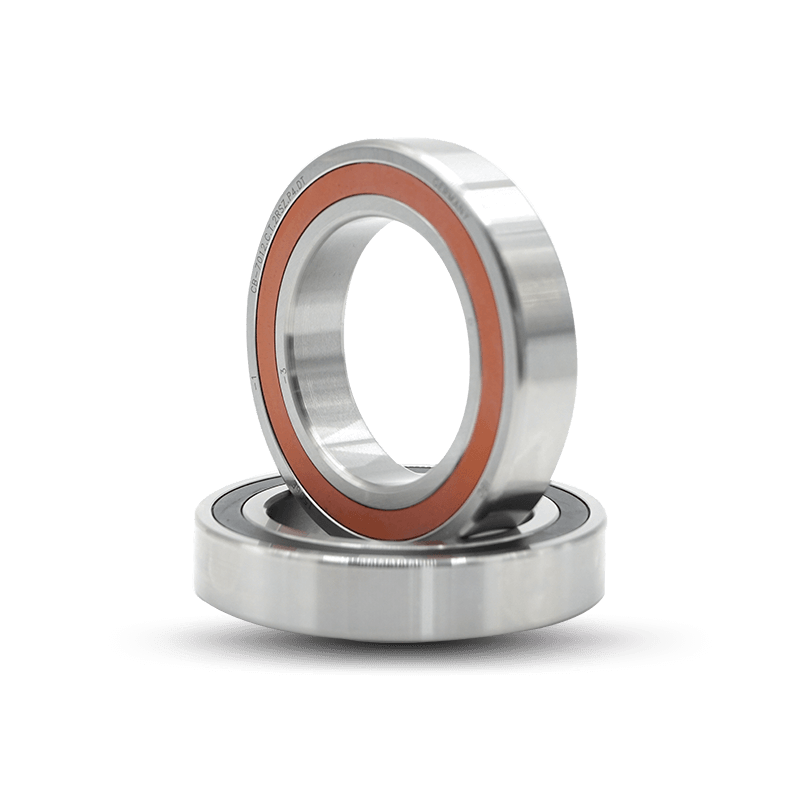

H7012-C-2RZ-HQ1-T-P4S-DT 609518mm high speed spindle bearing angular contact ball bearings OEM Home / Product / Angular contact ball bearing series / Super precision angular contact ball bearings-sealed / H7012-C-2RZ-HQ1-T-P4S-DT 609518mm high speed spindle bearing angular contact ball bearings

H7012-C-2RZ-HQ1-T-P4S-DT 609518mm high speed spindle bearing angular contact ball bearings

60*95*18mm high-speed spindle bearings, namely angular contact ball bearings, are key components in precision machinery. This kind of bearing has excellent rotation performance and load-bearing capacity, and is suitable for high-speed, high-precision working environments. Its design is compact, its structure is strong, and it can withstand large axial and radial loads. At the same time, its angular contact design makes the bearing more stable during operation, reduces vibration and noise, and improves the operating efficiency and service life of the equipment. The size of 60*95*18mm makes it widely used in various small and medium-sized mechanical equipment, providing strong support for the normal operation of the equipment.

Contact now Ask a question

The products produced by Huaxing Group are widely used in various fields. Please feel free to contact us if you have any bearing requirements!

OVERVIEW
TECHNICAL SPECIFICATION
APPLICATION AND OTHERS

Hybrid bearings using ceramic balls are designed for applications where high grade electrical isolation is necessary and / or high speeds occur. The bearing lifetime is extended because electrical corrosion can not occur and high speed operation seizures are avoided. The robust design, together with a combination of steel and ceramics, makes the bearings useful for many different applications.
- Machine tool spindles: State of the art machining processes, like high-speed milling, require a new concept of bearing arrangements for spindles. The application of hybrid bearings has resulted in a remarkable improvement in performance. For many years we have successfully used spindles with hybrid bearings for our own production processes.
- Vacuum Pumps: The reliability of these bearings is of utmost importance, as a breakdown can result in high costs.
- Medical equipment like X-ray tube bearings
- Emergency bearings, like touchdown bearings, for magnetic bearing systems
- Bearings for aeronautic and aerospace applications

Size Chart Unit: mm	Mass	Boundary Dimensions(mm)					Angel	Assemble Dimensions(mm)
Bearing Numbers	m kg	d	D	B	r	r₁	a	d_a	D_a	r_a	r_a1	E_tk
H7201-C-T-P-4	0.04	12	32	10	0.6	0.6	15	16.5	27.5	0.6	0.6	21.1
H7201-AC-T-P4	0.04	12	32	10	0.6	0.6	25	16.5	27.5	0.6	0.6	21.1
H7201-C-T-HQ1-P4	0.03	12	32	10	0.6	0.6	15	16.5	27.5	0.6	0.6	21.1
H7201-AC-T-HQ1-P4	0.03	12	32	10	0.6	0.6	25	16.5	27.5	0.6	0.6	21.1
H71902-C-T-P4	0.02	15	28	7	0.3	0.3	15	18	25.5	0.3	0.3	20.9
H71902-AC-T-P4	0.02	15	28	7	0.3	0.3	25	18	25.5	0.3	0.3	20.9
H71902-C-T-HQ1-P4	0.01	15	28	7	0.3	0.3	1S	18	25.5	0.3	0.3	20.9
H71902-AC-T-HQ1-P4	0.01	15	28	7	0.3	0.3	25	18	25.5	0.3	0.3	20.9
H71902-C-T-X-P4	0.02	15	28	7	0.3	-	1S	18	25.5	0.3	0.3	20.3
H71902-AC-T-X-P4	0.02	15	28	7	0.3	-	25	18	25.5	0.3	0.3	20.3
H71902-C-2RZ-T-HQ1-P4	0.02	15	28	7	0.3	-	25	18	25.5	0.3	0.3	20.3
H7002-C-T-P-4	0.03	15	32	9	0.3	0.3	15	19	29	0.3	0.1	22.3
H7002-AC-T-P4	0.03	15	32	9	0.3	0.3	25	19	29	0.3	0.1	22.3
H7002-C-T-HQ1-P4	0.03	15	32	9	0.3	0.3	15	19	29	0.3	0.1	22.3
H7002-AC-T-HQ1-P4	0.03	15	32	9	0.3	0.3	25	19	29	0.3	0.1	22.3
H7002-C-T-X-P4	0.03	15	32	9	0.3	-	15	19	29	0.3	0.1	22.2
H7002-AC-T-X-P4	0.03	15	32	9	0.3	-	25	19	29	0.3	0.1	22.2
H7002-C-2RZ-T-HQ1-P4	0.03	15	32	9	0.3	-	25	19	29	0.3	0.1	22.2
H7202-C-T-P-4	0.04	15	35	11	0.6	0.6	15	19.5	30.5	0.6	0.6	23.3
H7202-AC-T-P4	0.04	15	35	11	0.6	0.6	25	19.5	30.5	0.6	0.6	23.3
H7202-C-T-HQ1-P4	0.04	15	35	11	0.6	0.6	15	19.5	30.5	0.6	0.6	23.3
H7202-AC-T-HQ1-P4	0.04	15	35	11	0.6	0.6	25	19.5	30.5	0.6	0.6	23 3
H71903-C-T-P4	0.02	17	30	7	0.3	0.3	15	20	30.5	0.3	0.3	22.2
H71903-AC-T-P4	0.02	17	30	7	0.3	0.3	25	20	27.5	0.3	0.3	22.2
H71903-C-T-HQ1-P4	0.01	17	30	7	0.3	0.3	15	20	27.5	0.3	0.3	22.2
H71903-AC-T-HQ1-P4	0.01	17	30	7	0.3	0.3	25	20	27.5	0.3	0.3	22.2
H71903-C-T-X-P4	0.02	17	30	7	0.3	-	15	20	27.5	0.3	0.3	22.3
H71903-AC-T-X-P4	0.02	17	30	7	0.3	-	25	20	27.5	0.3	0.3	22.3
H71903-AC-T-X-P4	0.02	17	30	7	0.3	-	25	20	27.5	0.3	0.3	22.3
H7003-C-T-P4	0.04	17	35	10	0.3	0.3	15	21	32	0.3	0.1	24.1

H7003-C-T-HQ1-P4	0.03	17	35	10	0.3	0.3	15	21	32	0.3	0.1	24.1
H7003-AC-T-HQ1-P4	0.03	17	35	10	0.3	0.3	25	21	32	0.3	0.1	24.1
H7003-C-T-X-P4	0.04	17	35	10	0.3	-	15	21	32	0.3	0.1	24.7
H7003-AC-T-X-P4	0.04	17	35	10	0.3	-	25	21	32	0.3	0.1	24.7
H7003-C-2RZ-T-HQ1-P4	0.04	17	35	10	0.3	-	25	21	32	0.3	0.1	24.7
H7203-C-T-P4	0.06	17	40	12	0.6	0.6	15	22.5	34.5	0.6	0.6	26.7
H7203-AC-T-P4	0.06	17	40	12	0.6	0.6	25	22.5	34.5	0.6	0.6	26.7
H7203-C-T-HQ1-P4	0.06	17	40	12	0.6	0.6	15	22.5	34.5	0.6	0.6	26.7
H7203-AC-T-HQ1-P4	0.06	17	40	12	0.6	0.6	25	22.5	34.5	0.6	0.6	26.7
H71904-C-T-P4	0.03	20	37	9	0.3	0.3	15	24	33.5	0.3	0.3	26.8
H71904-AC-T-P4	0.03	20	37	9	0.3	0.3	25	24	33.5	0.3	0.3	26.8
H71904-C-T-HQ1-P4	0.03	20	37	9	0.3	0.3	15	24	33.5	0.3	0.3	26.8
H71904-AC-T-HQ1-P4	0.03	20	37	9	0.3	0.3	25	24	33.5	0.3	0.3	26.8
H71904-C-T-X-P4	0.04	20	37	9	0.3	-	15	24	33.5	0.3	03	27.2
H71904-AC-T-X-P4	0.04	20	37	9	0.3	-	25	24	33.5	0.3	0.3	27.2
H71904-C-2RZ-T-HQ1-P4	0.04	20	37	9	0.3	-	25	24	33.5	0.3	0.3	27.2
H7004-C-T-P4	0.07	20	42	12	0.6	0.6	15	25	37	0.6	0.3	28.8
H7004 AC-T-P4	0.07	20	42	12	0.6	0.6	25	25	37	0.6	0.3	28.8
H7004-C-T-HQ1P4	0.07	20	42	12	0.6	0.6	15	25	37	0.6	0.3	28.8
H7004-AC-T-HQ1-P4	0.07	20	42	12	0.6	0.6	25	25	37	0.6	0.3	28.8
H7004-C-T-X-P4	0.08	20	42	12	0.6	1	15	25	37	0.6	0.3	29.3
H7004-AC-T-X-P4	0.08	20	42	12	0.6	1	25	25	37	0.6	0.3	29.3
H7004-C-2RZ-T-HQ1-P4	0.08	20	42	12	0.6	1	25	25	37	0.6	0.3	29.3
H7204-C-T-P4	0.1	20	47	14	1	1	15	26.5	40.5	1	1	31.7
H7204-AC-T-P4	0.1	20	47	14	1	1	25	26.5	40.5	1	1	31.7
H7204-C-T-HQ1-P4	0.09	20	47	14	1	1	15	26.5	40.5	1	1	31.7
H7204-AC-T-HQ1-P4	0.09	20	47	14	1	1	25	26.5	40.5	1	1	31.7
H71905-C-T-P4	0.04	25	42	9	0.3	0.3	15	29	38.5	0.3	0.3	31.8
H71905-AC-T-P4	0.04	25	42	9	0.3	0.3	25	29	38.5	0.3	0.3	31.8

H71905-C-T-HQ1-P4	0.04	25	42	9	0.3	0.3	15	29	38.5	0.3	0.3	31.8
H71905-AC-T-HQ1-P4	0.04	25	42	9	0.3	0.3	25	29	38.5	0.3	0.3	31.8
H71905-C-T-X-P4	0.05	25	42	9	0.3	-	15	29	38.5	0.3	0.3	32.2
H7190S-AC-T-X-P4	0.05	25	42	9	0.3	-	25	29	38.5	0.3	0.3	32.2
H71905-C-2RZ-T-HQ1-P4	0.05	25	42	9	0.3	-	25	29	38.5	0.3	03	32.2
H7005-C-T-P4	0.08	25	47	12	0.6	0.6	15	30	42	0.6	0.3	33.5
H7005-AC-T-P4	0.08	25	47	12	0.6	0.6	25	30	42	0.6	0.3	33.5
H7005-C-T-HQ1-P4	0.08	25	47	12	0.6	0.6	15	30	42	0.6	0.3	33.5
H7005-AC-T-HQ1-P4	0.08	25	47	12	0.6	0.6	25	30	42	0.6	0.3	33.5
H7005-C-T-X-P4	0.09	25	47	12	0.6	-	15	30	42	0.6	0.3	34.3
H7005-AC-T-X-P4	0.09	25	47	12	0.6	-	25	30	42	0.6	0.3	34.3
H7005-C-2RZ-T-HQ1-P4	0.09	25	47	12	0.6	-	25	30	42	0.6	0.3	34.3
H7205-C-T-P4	0.12	25	52	15	1	1	15	31.5	45.5	1	1	36.5
H7205-AC-T-P4	0.12	25	52	15	1	1	25	31.5	45.5	1	1	36.5
H7205-C-T-HQ1-P4	0.12	25	52	15	1	1	15	31.5	45.5	1	1	36.5
H7205-AC-T-HQ1-P4	0.12	25	52	15	1	1	25	31.5	45.5	1	1	36.5
H71906-C-T-P4	0.05	30	47	9	0.3	0.3	15	34	43.5	0.3	0.3	36.8
H71906-AC-TP4	0.05	30	47	9	0.3	0.3	25	34	43.5	0.3	0.3	36.8
H71906-C-T-HQ1-P4	0.04	30	47	9	0.3	0.3	15	34	43.5	0.3	0.3	36.8
H71906-AC-T-HQ1-P4	0.04	30	47	9	0.3	0.3	25	34	43.5	0.3	0.3	36.8
H71906-C-T-X-P4	0.05	30	47	9	0.3	-	15	34	43.5	0.3	0.3	36.8
H71906-AC-T-X-P4	0.05	30	47	9	0.3	-	25	34	43.5	0.3	0.3	36.8
H71906-C-2RZ-T-HQ1-P4	0.05	30	47	9	0.3	-	25	34	43.5	0.3	0.3	36.8
H7006-C-T-P4	0.11	30	55	13	1	1	15	36	49	1	0.3	40.4
H7006-AC-T-P4	0.11	30	55	13	1	1	2S	36	49	1	03	40.4
H7006-C-T-HQ1-P4	0.1	30	55	13	1	1	15	36	49	1	0.3	40.4
H7006-AC-T-HQ1-P4	0.1	30	55	13	1	1	25	36	49	1	0.3	40.4
H7006-C-T-X-P4	0.13	30	55	13	1	-	15	36	49	1	0.3	40.5
H7006-AC-T-X-P4	0.13	30	55	13	1	-	25	36	49	1	0.3	40.5
H7006-C-2RZ-T-HQ1-P4	0.12	30	55	13	1	-	25	36	49	1	0.3	40.5

H7206-C-T-P4	0.19	30	62	16	1	1	15	37.5	54.5	1	1	43.7
H7206-AC-T-P4	0.19	30	62	16	1	1	25	37.5	54.5	1	1	43.7
H7206-C-T-HQ1-P4	0.17	30	62	16	1	1	15	37.5	54.5	1	1	43.7
H7206-AC-T-HQ1-P4	0.17	30	62	16	1	1	25	37.5	54.5	1	1	43.7
H71907-C-T-P4	0.07	35	55	10	0.6	0.6	15	40	51.5	0.6	0.6	44
H71907-AC-T-P4	0.07	35	55	10	0.6	0.6	25	40	51.5	0.6	0.6	44
H71907-C-T-HQ1-P4	0.06	35	55	10	0.6	0.6	15	40	51.5	0.6	0.6	44
H71907-AC-T-HQ1-P4	0.06	35	55	10	0.6	0.6	25	40	51.5	0.6	0.6	44
H71907-C-T-X-P4	0.08	35	55	10	0.6	-	15	40	51.5	0.6	0.6	43.3
H71907-AC-T-X-P4	0.08	35	55	10	0.6	-	25	40	51.5	0.6	0.6	43.3
H71907 C-2RZ-T-HQ1-P4	0.08	35	55	10	0.6	-	25	40	51.5	0.6	0.6	43.3
H7007-C-T-P4	0.15	35	62	14	1	1	15	41	56	1	0.3	45.6
H7007-AC-T-P4	0.15	35	62	14	1	1	25	41	S6	1	0.3	45.6
H7007-C-T-HQ1-P4	0.13	35	62	14	1	1	15	41	56	1	0.3	45.6
H7007-AC-T-HQ1-P4	0.13	35	62	14	1	1	25	41	56	1	03	45.6
H7007-C-T-X-P4	0.17	35	62	14	1	-	15	41	56	1	0.3	46.5
H7007-AC-T-X-P4	0.17	35	62	14	1	-	25	41	56	1	0.3	46.5
H7007-C-2RZ-T-HQ1-P4	0.17	35	62	14	1	-	25	41	56	1	0.3	46.5
H7207-C-T-P4	0.28	35	72	17	1.1	1.1	15	44	63	1	1	50.7
H7207-AC-T-P4	0.28	35	72	17	1.1	1.1	25	44	63	1	1	50.7
H7207-C-T-HQ1-P4	0.24	35	72	17	1.1	1.1	15	44	63	1	1	50.7
H7207-AC-T-HQ1-P4	0.24	35	72	17	1.1	1.1	25	44	63	1	1	50.7
H71908-C-T-P4	0.11	40	62	12	0.6	0.6	15	45	58.5	0.6	0.6	49.1
H71908-AC-T-P4	0.11	40	62	12	0.6	0.6	25	45	58.5	0.6	0.6	49.1
H71908-C-T-HQ1-P4	0.09	40	62	12	0.6	0.6	15	45	58.S	0.6	0.6	49.1
H71908-AC-T-HQ1-P4	0.09	40	62	12	0.6	0.6	25	45	58.5	0.6	0.6	49.1
H71908-C-T-X-P4	0.13	40	62	12	0.6	-	15	45	58.5	0.6	0.6	49.3
H71908-AC-T-XP4	0.13	40	62	12	0.6	-	25	45	58.5	0.6	0.6	49.3
H71908-C-2RZ-T-HQ1P4	0.12	40	62	12	0.6	-	25	45	58.5	0.6	0.6	49.3
H7008-C-T-P4	0.19	40	68	15	1	1	15	46	62	1	0.3	50.8

H7008-AC-T-P4	0.19	40	68	15	1	1	25	46	62	1	0.3	50.8
H7008-C-T-HQ1-P4	0.17	40	68	15	1	1	15	46	62	1	0.3	50.8
H7008-AC-T-HQ1-P4	0.17	40	68	15	1	1	25	46	62	1	0.3	50.8
H7008-C-T-X-P4	0.22	40	68	IS	1	-	15	46	62	1	0.3	52
H7008-AC-T-X-P4	0.22	40	68	15	1	-	25	46	62	1	03	52
H7008-C-2RZ-T-HQ1-P4	0.2	40	68	15	1	-	25	46	62	1	0.3	52
H7208-C-T-P4	0.37	40	80	18	1.1	1.1	15	48	72	1	1	56.7
H7208-AC-T-P4	0.37	40	80	18	1.1	1.1	25	48	72	1	1	56.7
H7208-C-T-HQ1-P4	0.33	40	80	18	1.1	1.1	15	48	72	1	1	56.7
H7208-AC-T-HQ1-P4	0.33	40	80	18	1.1	1.1	25	48	72	1	1	56.7
H71909-C-T-P4	0.13	45	68	12	0.6	0.6	15	50	63.5	0.6	0.6	54.4
H71909-AC-T-P4	0.13	45	68	12	0.6	0.6	25	50	63.5	0.6	0.6	54.4
H71909-C-T-HQ1-P4	0.11	45	68	12	0.6	0.6	15	50	63.5	0.6	0.6	54.4
H71909-AC-T-HQ1-P4	0.11	45	68	12	0.6	0.6	25	50	63.5	0.6	0.6	54.4
H71909-C-T-X-P4	0.14	45	68	12	0.6	-	15	50	63.5	0.6	0.6	54.5
H71909-AC-T-X-P4	0.14	45	68	12	0.6	-	25	50	63.5	0.6	0.6	54.5
H71909-C-2RZ-T-HQ1-P4	0.13	45	68	12	0.6	-	25	50	63.5	0.6	0.6	54.5
H7009-C-T-P4	0.23	45	75	16	1	1	15	51	69	1	0.3	56.2
H7009-AC-T-P4	0.23	45	75	16	1	1	25	51	69	1	0.3	56.2
H7009-C-T-HQ1P4	0.2	45	75	16	1	1	15	51	69	1	0.3	56.2
H7009-AC-T-HQ1-P4	0.2	45	75	16	1	1	25	51	69	1	0.3	56.2
H7009-C-T-X-P4	0.27	45	75	16	1	-	15	51	69	1	0.3	57.7
H7009-AC-T-X-P4	0.27	45	75	16	1	-	25	51	69	1	0.3	57.7
H7009-C-2RZ-T-HQ1-P4	0.26	45	75	16	1	-	25	51	69	1	0.3	57.7
H7209-C-T-P4	0.41	45	85	19	1.1	1.1	15	52.5	78	1	1	61.8
H7209-AC-T-P4	0.41	45	85	19	1.1	1.1	25	52.5	78	1	1	61.8
H7209-C-T-HQ1-P4	0.34	45	85	19	1.1	1.1	15	52.5	78	1	1	61.8
H7209-AC-T-HQ1-P4	0.34	45	85	19	1.1	1.1	25	52.5	78	1	1	61.8
H71910-C-T-P4	0.13	50	72	12	0.6	0.6	15	55	67.5	0.6	0.6	58.9
H71910-AC-T-P4	0.13	50	72	12	0.6	0.6	25	55	67.5	0.6	0.6	58.9

H71910-C-T-HQ1-P4	0.11	50	72	12	0.6	0.6	15	55	67.5	0.6	0.6	58.9
HT1910-AC-T-P4	0.11	50	72	12	0.6	0.6	25	55	67.5	0.6	0.6	58.9
HJ1910-C-T-X-P4	0.15	50	72	12	0.6	0.6	15	55	67.5	0.6	0.6	59
H71910-AC-T-X-P4	0.15	50	72	12	0.6	0.6	25	55	67.5	0.6	0.6	59
H71910-C-2RZ-T-HQl-P4	0.14	50	72	12	0.6	0.6	25	55	67.5	0.6	0.6	59
H7010-C-T-P4	0.25	50	80	16	1	1	15	56	74	1	0.3	61.2
H7010-AC-T-P4	0.25	50	80	16	1	1	25	56	74	1	0.3	61.2
H7010-C-T-HQ1-P4	0.21	50	80	16	1	1	15	56	74	1	0.3	61.2
H7010-AC-T-HQ1-P4	0.21	50	80	16	1	1	25	56	74	1	0.3	61.2
H7010-C-T-X-P4	0.29	50	80	16	1	-	15	56	74	1	0.3	62.7
H7010-AC-T-X-P4	0.29	50	80	16	1	-	25	56	74	1	0.3	62.7
H7010-C-2RZ-T-HQ1-P4	0.27	50	80	16	1	-	25	56	74	1	0.3	62.7
H3210-C-T-P4	0.46	50	90	20	1.1	1.1	15	57	83	1	1	66.2
H7210-AC-T-P4	0.46	50	90	20	1.1	1.1	25	57	83	1	1	66.2
HT210-C-T-HQ1-P4	0.39	50	90	20	1.1	1.1	1S	57	83	1	1	66.2
H7210AC-T-HQ1-P4	0.39	50	90	20	1.1	1.1	25	57	83	1	1	66.2
H71911-C-T-P4	0.18	55	80	13	1	1	15	60	75.5	0.6	0.6	65.1
H71911-AC-T-P4	0.18	55	80	13	1	1	25	60	75.5	0.6	0.6	65.1
H71911-C-T.HQ1-P4	0.15	55	80	13	1	1	15	60	75.5	0.6	0.6	65.1
H71911-AC-THQ1-P4	0.15	55	80	13	1	1	25	60	75.5	0.6	0.6	65.1
HT1911-C-T-X-P4	0.2	55	80	13	1	-	15	60	75.5	0.6	0.6	65.2
HT1911-AC-T-X-P4	0.2	55	80	13	1	-	25	60	75.5	0.6	0.6	65.2
HT1911-C-2RZ-T-HQ1-P4	0.19	55	80	13	1	-	25	60	75.5	0.6	0.6	65.2
H7011-C-T-P4	0.37	55	90	18	1.1	1.1	15	62	83	1	0.6	68.1
H7011-AC-T-P4	0.37	55	90	18	1.1	1.1	25	62	83	1	0.6	68.1
H7011-C-T-HQ1-P4	0.32	55	90	18	1.1	1.1	15	62	83	1	0.6	68.1
H7011-AC-T-HQ1-P4	0.32	55	90	18	1.1	1.1	25	62	83	1	0.6	68.1
H7011-C-T-X-P4	0.43	55	90	18	1.1	-	15	62	83	1	0.6	69.7
H7012-C-T.HQ1-P4	0.34	60	95	18	1.1	1.1	15	67	88	1	0.6	73.1
H7012-AC-THQ1-P4	0.34	60	95	18	1.1	1.1	25	67	88	1	0.6	73.1

70、719、 72 series								hl2	H12	max		Nominal value
H7012-C-T-X-P4	0.46	60	95	18	1.1	-	15	67	88	1	0.6	74.7
H7012-AC-T-X-P4	0.46	60	95	18	1.1	-	25	67	88	1	0.6	74.7
H7012-C-2RZ-T-HQ1-P4	0.43	60	95	18	1.1	-	25	67	88	1	0.6	74.7
H7212-C-T-P4	0.8	60	110	22	1.5	1.5	15	69.5	101.5	1.5	1.5	81.2
H7212-AC-T-P4	0.8	60	110	22	1.5	1.5	25	69.5	101.5	1.5	1.5	81.2
H7212-C-T-HQ1-P4	0.7	60	110	22	1.5	1.5	15	69.5	101.5	1.5	1.5	81.2
H7212-AC-T-P4	0.7	60	110	22	1.5	1.5	25	69.5	101.5	1.5	1.5	81.2
H71913-C-T-P4	0.2	65	90	13	1	1	15	70	85.5	0.6	0.6	75.1
H71913-AC-TP4	0.2	65	90	13	1	1	25	70	85.5	0.6	0.6	75.1
H71913-C-T-HQ1-P4	0.17	65	90	13	1	1	15	70	85.5	0.6	0.6	75.1
H71913-AC-T-HQ1-P4	0.17	65	90	13	1	1	25	70	85.5	0.6	0.6	75.1
H7011-AC-T-X-P4	0.43	55	90	18	1.1	-	25	62	83	1	0.6	69.7
H7011-C-2RZ-T-HQ1-P4	0.4	SS	90	18	1.1	-	25	62	83	1	0.6	69.7
H7211-C-T-P4	0.61	55	100	21	1.5	1.5	15	63	92	1.5	1.5	73.7
H7211-AC-T-P4	0.61	55	100	21	1.5	1.5	25	63	92	1.5	1.5	73.7
H7211-C-T-HQ1-P4	0.51	55	100	21	1.5	1.5	15	63	92	1.5	1.5	73.7
H7211-AC-T-HQ1-P4	0.51	55	100	21	1.5	1.5	25	63	92	1.5	1.5	73.7
H71912-C-TP4	0.19	60	85	13	1	1	15	65	80.5	0.6	0.6	70.1
H71912-AC-T-P4	0.19	60	85	13	1	1	25	65	80.5	0.6	0.6	70.1
H71912-C-T-HQ1-P4	0.16	60	85	13	1	1	15	65	80.5	0.6	0.6	70.1
H71912-AC-T-HQ1-P4	0.16	60	85	13	1	1	25	65	80.5	0.6	0.6	70.1
H71912-C-T-X-P4	0.21	60	85	13	1	-	15	65	80.5	0.6	0.6	70.2
H71912-AC-T-X-P4	0.21	60	85	13	1	-	25	65	80.S	0.6	0.6	70.2
H71912-C-2RZ-T-HQ1-P4	0.19	60	85	13	1	-	25	65	80.5	0.6	0.6	70.2
H7012-C-T-P4	0.4	60	95	18	1.1	1.1	15	67	88	1	0.6	73.1
H7012-AC-T-P4	0.4	60	95	18	1.1	1.1	25	67	88	1	0.6	73.1
H71913-C-T-X-P4	0.23	65	90	13	1	1	15	70	85.5	0.6	0.6	75.2
H71913-AC-T-XP4	0.23	65	90	13	1	1	25	70	85.5	0.6	0.6	75.2
H71913-AC-2RZ-T-HQ1-P4	0.21	65	90	13	1	1	25	70	85.5	0.6	0.6	75.2
H7013-C-T-P4	0.42	65	100	18	1.1	1.1	15	72	93	1	0.6	78.1

70、719、 72 series								hl2	H12	max		Nominal value
H7013-AC-T-P4	0.42	65	100	18	1.1	1.1	25	72	93	1	0.6	78.1
H7013-C-T-HQ1-P4	0.36	65	100	18	1.1	1.1	15	72	93	1	0.6	78.1
H7013-C-T-X-P4	0.36	65	100	18	1.1	1.1	25	72	93	1	0.6	78.1
H7013-AC-T-HQ1-P4	0.48	65	100	18	1.1	-	15	72	93	1	0.6	79.7
H7013-AC-T-X-P4	0.48	65	100	18	1.1	-	25	72	93	1	0.6	79.7
H7013-C-2RZ-T-HQ1-P4	0.45	65	100	18	1.1	-	25	72	93	1	0.6	79.7
H7213-C-T-P4	1.02	65	120	23	1.5	1.5	15	75.5	109.5	1.5	1.5	88.2
H7213-AC-T-P4	1.02	65	120	23	1.5	1.5	25	75.5	109.5	1.5	1.5	88.2
H7213-C-T-HQ1-P4	0.88	65	120	23	1.5	1.5	15	75.5	109.5	1.5	1.5	88.2
H7213-AC-THQ1-P4	0.88	65	120	23	1.5	1.5	25	75.5	109.5	1.5	1.5	88.2
H71914-C-T-P4	0.33	70	100	16	1	1	15	76	94.5	0.6	0.6	82.2
H71914-AC-T-P4	0.33	70	100	16	1	1	25	76	94.5	0.6	0.6	82.2
H71914-C-T-HQ1-P4	0.28	70	100	16	1	1	15	76	94.5	0.6	0.6	82.2
H71914-AC-T-HQ1-P4	0.28	70	100	16	1	1	25	76	94.5	0.6	0.6	82.2
H71914-C-T-X-P4	0.37	70	100	16	1	-	15	76	94.5	0.6	0.6	82.3
H71914-AC-T-X-P4	0.37	70	100	16	1	-	25	76	94.5	0.6	0.6	82.3
H71914-AC-2RZ-T-HQ1-P4	0.35	70	100	16	1	-	25	76	94.5	0.6	0.6	82.3
H7014-C-T-P4	0.59	70	110	20	1.1	1.1	15	77	102	1	0.6	85
H7014-AC-T-P4	0.59	70	110	20	1.1	1.1	25	77	102	1	0.6	85
H7014-C-T-HQ1P4	0.5	70	110	20	1.1	1.1	15	77	102	1	0.6	85
H7014-AC-T-HQ1-P4	0.5	70	110	20	1.1	1.1	25	77	102	1	0.6	85
H7014-C-T-X-P4	0.67	70	110	20	1.1	-	15	77	102	1	0.6	86.7
H7014-AC-T-X-P4	0.67	70	110	20	1.1	-	25	77	102	1	0.6	86.7
H7014-C-2RZ-T-HQ1-P4	0.63	70	110	20	1.1	-	25	77	102	1	0.6	86.7
H7214-C-T-P4	1.12	70	125	24	1.5	1.5	15	80	115	1.5	1.5	92.7
H7214-AC-T-P4	1.12	70	125	24	1.5	1.5	25	80	115	1.5	1.5	92.7
H7214-C-T-HQ1-P4	0.96	70	125	24	1.5	1.5	15	80	115	1.5	1.5	92.7
H7214-AC-T-HQ1-P4	0.96	70	125	24	1.5	1.5	25	80	115	1.5	1.5	92.7
H71915-C-T-P4	0.35	75	105	16	1	1	15	81	99.5	0.6	0.6	87.2
H71915-AC-T-P4	0.35	75	105	16	1	1	25	81	99.5	0.6	0.6	87.2

H71915-C-T-HQ1-P4	0.3	75	105	16	1	1	15	81	99.5	0.6	0.6	87.2
H71915-AC-T-HQ1-P4	0.3	75	105	16	1	1	25	81	99.5	0.6	0.6	87.2
H71915-C-T-X-P4	0.4	75	10S	16	1	-	15	81	99.5	0.6	0.6	87.3
H71915-AC-T-X-P4	0.4	75	105	16	1	-	25	81	99.5	0.6	0.6	87.3
H71915-AC-2RZ-T-HQ1-P4	0.37	75	105	16	1	-	25	81	99.5	0.6	0.6	87.3
H7015-C-T-P4	0.62	75	115	20	1.1	1.1	15	82	107	1	0.6	90
H7015-AC-T-P4	0.62	75	115	20	1.1	1.1	25	82	107	1	0.6	90
H7015-C-T-HQ1-P4	0.53	75	115	20	1.1	1.1	15	82	107	1	0.6	90
H7015-AC-T-HQ1-P4	0.53	75	115	20	1.1	1.1	25	82	107	1	0.6	90
H7015-C-T-X-P4	0.71	75	115	20	1.1	-	15	82	107	1	0.6	91.7
H7015-AC-T-X-P4	0.71	75	115	20	1.1	-	25	82	107	1	0.6	91.7
H7015-C-2RZ-T-HQ1-P4	0.66	75	115	20	1.1	-	25	82	107	1	0.6	91.7
H7215-C-T-P4	1.21	75	130	25	1.5	1.5	15	85	120	1.5	1.5	97.7
H7215-AC-T-P4	1.21	75	130	25	1.5	1.5	25	85	120	1.5	1.5	97.7
H7215-C-T-HQ1-P4	1.05	75	130	25	1.5	1.5	15	85	120	1.5	1.5	97.7
H7215-AC-T-HQ1-P4	1.05	75	130	25	1.5	1.5	25	85	120	1.5	1.5	97.7
H71916-C-TP4	0.37	80	110	16	1	1	15	86	104	0.6	0.6	92.2
H71916-AC-TP4	0.37	80	110	16	1	1	25	86	104	0.6	0.6	92.2
H71916-C-T-HQ1-P4	0.31	80	110	16	1	1	15	86	104	0.6	0.6	92.2
H71916-AC-T-HQ1-P4	0.31	80	110	16	1	1	25	86	104	0.6	0.6	92.2
H71916-C-T-X-P4	0.41	80	110	16	1	-	15	86	104	0.6	0.6	92.2
H71916-AC-T-X-P4	0.41	80	110	16	1	-	25	86	104	0.6	0.6	92.2
H71916-AC-2RZ-T-HQ1-P4	0.38	80	110	16	1	-	25	86	104	0.6	0.6	92.2
H7016-C-T-P4	0.84	80	125	22	1.1	1.1	15	88	117	1	0.6	96.8
H7016-AC-T-P4	0.84	80	125	22	1.1	1.1	25	88	117	1	0.6	96.8
H7016-C-T-HQ1-P4	0.71	80	125	22	1.1	1.1	15	88	117	1	0.6	96.8
H7016-AC-T-HQ1-P4	0.71	80	125	22	1.1	1.1	25	88	117	1	0.6	96.8
H7016-C-T-X-P4	0.96	80	125	22	1.1	-	15	88	117	1	0.6	98.9

70、719、72 series								hl2	H12	max	ral	Nominal value
H7216-C-T-P4	1.52	80	140	26	2	2	15	94	126	2	2
H7216-AC-T-P4	1.52	80	140	26	2	2	25	94	126	2	2	105.2
H7216-C-T-HQ1-P4	1.4	80	140	26	2	2	15	94	126	2	2	105.2
H7216-AC-T-HQ1-P4	1.4	80	140	26	2	2	25	94	126	2	2	105.2
H71917-C-T-P4	0.53	85	120	18	1.1	1.1	15	92	114	0.6	0.6	99.2
H71917-AC-T-P4	0.53	85	120	18	1.1	1.1	25	92	114	0.6	0.6	99.2
H71917-C-T-HQ1-P4	0.45	85	120	18	1.1	1.1	15	92	114	0.6	0.6	99.2
H71917-AC-T-HQ1-P4	0.45	85	120	18	1.1	1.1	25	92	114	0.6	0.6	99.2
H71917-C-T-X-P4	0.61	85	120	18	1.1	-	15	92	114	0.6	0.6	99.7
H71917-AC-T-X-P4	0.61	85	120	18	1.1	-	25	92	114	0.6	0.6	99.7
H71917-AC-2RZ-T-HQ1-P4	0.57	85	120	18	1.1	-	25	92	114	0.6	0.6	99.7
H7017-C-T-P4	0.89	85	130	22	1.1	11	15	93	122	1	0.6	101.8
H7017-AC-T-P4	0.89	85	130	22	1.1	1.1	25	93	122	1	0.6	101.8
H7017-C-T-HQ1-P4	0.74	85	130	22	1.1	1.1	15	93	122	1	0.6	101.8
H7017-AC-T-HQ1-P4	0.74	85	130	22	1.1	1.1	25	93	122	1	0.6	101.8
H7017-C-T-X-P4	0.99	85	130	22	1.1	-	15	93	122	1	0.6	103.9
H7017-AC-T-X-P4	0.99	85	130	22	1.1	-	25	93	122	1	0.6	103.9
H7017-C-2RZ-T-HQ1-P4	0.93	85	130	22	1.1	-	25	93	122	1	0.6	103.9
H7217-C-T-P4	1.85	85	150	23	2	2	15	98	138	2	2	112.3
H7217-AC-T-P4	1.85	85	150	23	2	2	25	98	138	2	2	112.3
H7217-C-T-HQ1-P4	1.58	85	150	28	2	2	15	98	138	2	2	112.3
H7217-AC-T-HQ1-P4	1.58	85	150	28	2	2	25	98	138	2	2	112.3
H71918-C-T-P4	0.55	90	125	18	1.1	1.1	15	97	119	0.6	0.6	104.2
H71918-AC-T-P4	0.55	90	125	18	1.1	1.1	25	97	119	0.6	0.6	104.2
H71918-C-T-HQ1-P4	0.47	90	125	18	1.1	1.1	15	97	119	0.6	0.6	104.2
H71918-AC-T-HQ1-P4	0.47	90	125	18	1.1	1.1	25	97	119	0.6	0.6	104.2
H71918-C-T-X-P4	0.63	90	125	18	1.1	-	15	97	119	0.6	0.6	104.5
H71918-AC-T-X-P4	0.63	90	125	18	1.1	-	25	97	119	0.6	0.6	104.5
H71918-AC-2RZ-T-HQ1-P4	0.58	90	125	18	1.1	-	25	97	119	0.6	0.6	104.5
H7018-C-T-P4	1.15	90	140	24	1.5	1.5	15	100	131	1.5	0.6	108.6

Product description

The 60*95*18mm high-speed spindle angular contact ball bearing, as a masterpiece of our manufacturer, demonstrates excellent craftsmanship and performance. This product is specially designed for high-precision, high-speed working environments and is suitable for machine tool spindles, vacuum pumps, medical equipment, aerospace and other fields.

In terms of machine tool spindles, it uses advanced processing technologies such as high-speed milling to provide a new bearing layout concept for the spindles. The use of hybrid bearings significantly improves performance and we have successfully implemented this bearing into our own production processes over the years with significant results.

For vacuum pumps, the reliability of this bearing is crucial, as any failure can result in high costs. Its stable operation ensures the durability and efficiency of the vacuum pump.

In the medical field, such as X-ray tube bearings, this bearing also plays a key role, providing a solid guarantee for the precise operation of medical equipment.

In addition, it is widely used in emergency bearings, such as landing bearings in magnetic bearing systems, and bearings in aerospace applications, demonstrating its wide adaptability and excellent performance.

High-precision equipment guarantees the quality and reliability of product manufacturing

Hangzhou Huaxing Kechuang Holding Group Co., Ltd.

Hangzhou Huaxing Kechuang Holding Group Co., Ltd was established in March 1995. Currently, there are Hangzhou Huaxing Bearing Co., Ltd., Hangzhou Yijia Precision Bearing Co., Ltd., Zhejiang Aiken Machinery Co., Ltd., Zhejiang Aijing Machinery Technology Co., Ltd., and Hangzhou Aibesi Bearing Co., Ltd., Huaxing Bearing Technology (Changxing) Co., Ltd. 6 companies and 2 industrial parks. We are professional H7012-C-2RZ-HQ1-T-P4S-DT 60*95*18mm high speed spindle bearing angular contact ball bearings suppliers and company. The group covers a total area of 66,800 square meters, with a planned total construction area of 130,000 square meters and a built-up area of 70,000 square meters. Three of the six companies have passed the identification of high-tech enterprises in key areas supported by the state, and have two provincial-level high-tech R&D centers. The group's R&D center has more than 80 scientific research personnel including doctors, masters, and industry senior engineers. The R&D team is strong. It has participated in the research and development of national science and technology projects and national defense strong military projects for many times. In 2020, Yijia Precision has entered the Aerospace Science and Technology Group and AVIC Group procurement system.

The company strictly follows the IATF16949, ISO9001 quality management system and ISO14001 environmental management system. Simply you can ODM/OEM H7012-C-2RZ-HQ1-T-P4S-DT 60*95*18mm high speed spindle bearing angular contact ball bearings.

Company Certificate

Passed IS09001: 2000 quality management system and ISO/TSl6949: 2002 quality management system certification.

Factory

Contact us

Address:
East Side of Dongxi Road, Linping Hangzhou, China.
Phone:
86-571-86157772
Fax:
86-571-86157772
Email:
[email protected]

If you need it, please contact us!

We have a strong R&D team, and we can develop and produce products according to the drawings or samples the customers offered.

Inside Ø (mm):	60
Outside Ø (mm):	95
Width (mm):	18
Tolerance for inside-Ø (mm):	0/-0,007
Tolerance for outside-Ø (mm):	0/-0,008
Tolerance for width (mm):	0/-0,12
Tolerance for shaft da (mm):	0,3/-0,3
Contact Angle:	15°
Rows Of Balls:	single row
Seal:	non-contacted rubber seals
Ring Material:	GCr15, 100Cr6, SUJ2
Rolling Element Material:	Ceramics
Cage Material:	Phenolic Resin
Tolerance Class:	P4S
Lubrication:	greased with Lubcon L 252
Type of lubrication:	grease
Product weight:	0,4 kg

Language

86-571-86157772
