Ball Screw Support Bearing Manufacturers

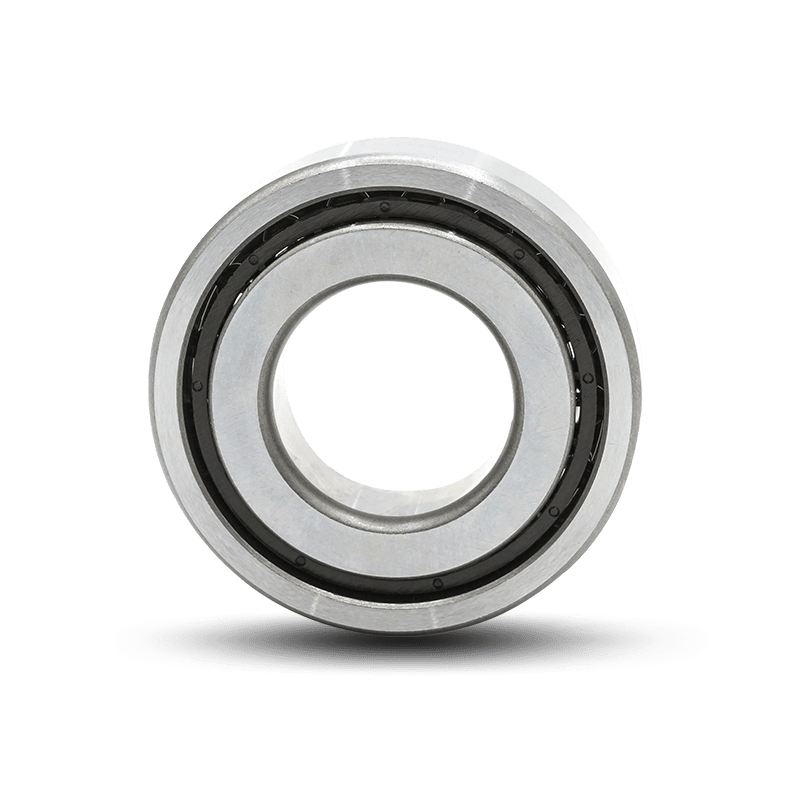

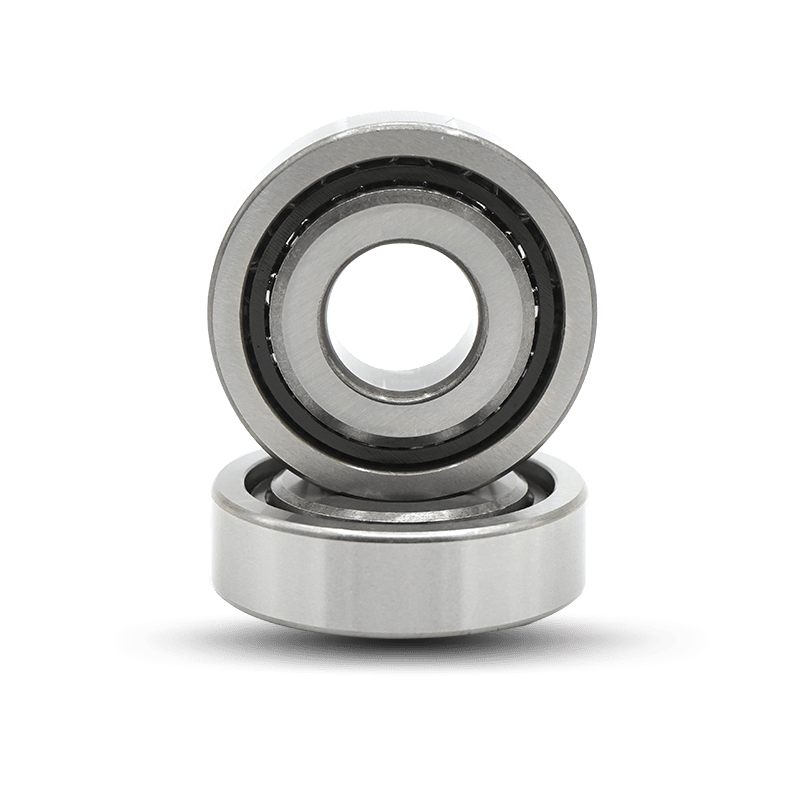

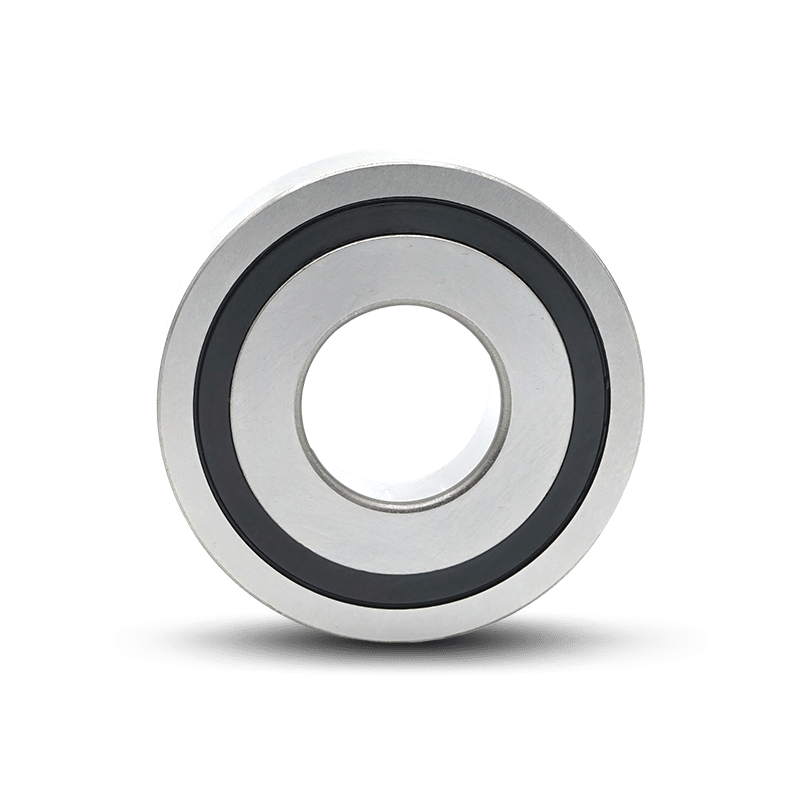

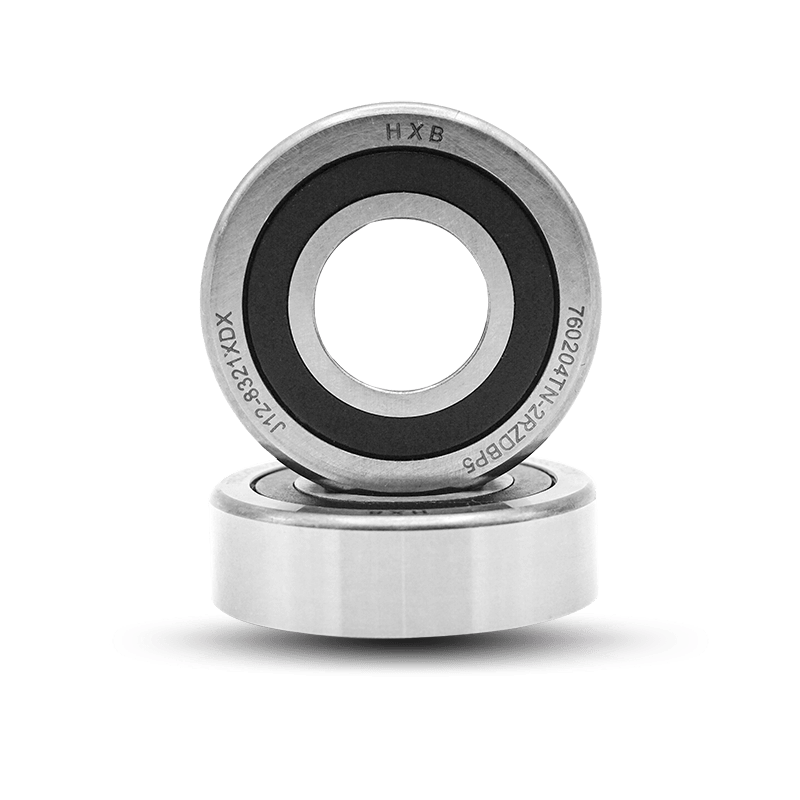

What is Ball Screw Support Bearing

Ball Screw Support Bearing is a key component in various mechanical systems that utilize ball screws to convert rotary motion to linear motion and vice versa. These bearings provide support for the rotating ball screws and help maintain accurate and smooth linear or rotary motion of the system.
The basic structure of Ball Screw Support Bearing consists of an inner ring, an outer ring and a set of balls in the middle, and the balls roll along with the screw. The inner ring is connected to the rotating screw and the outer ring is fixed to the system frame. As the screw rotates, the balls move along the screw's flight and convert rotary motion into linear motion and vice versa.
There are two types of Ball Screw Support Bearing: angular contact and radial contact. Angular contact bearings are used for high precision and high load applications, while radial contact bearings are used for low precision and low load applications.
The advantages of Ball Screw Support Bearing include high precision, high efficiency, high load capacity and long service life. They also provide low friction, smooth operation and low noise.

Features of Ball Screw Support Bearing

1. High load capacity: Ball Screw Support Bearing can withstand high axial and radial loads, making it suitable for heavy-duty applications.
2. Precision: These bearings are designed to provide high precision and high precision linear motion, making them ideal for applications requiring precise positioning.
3. Long Life: Ball Screw Support Bearing are designed for long life and high reliability, capable of running millions of cycles without noticeable wear or degradation.
4. Low Friction: Ball Screw Support Bearing is designed to minimize friction to provide smooth and efficient movement. This reduces energy consumption and extends the life of the system.
5. Easy maintenance: Ball Screw Support Bearing is designed for easy maintenance, no need to remove the entire system from the device to replace worn or damaged parts.
6. Versatility: These bearings are available in a variety of sizes and designs, making them suitable for a variety of applications and industries.
7. Durability: Ball Screw Support Bearings are designed to withstand harsh operating conditions, making them ideal for use in harsh industrial environments.
8. Cost-effective: Ball Screw Support Bearing provides a cost-effective solution for high-precision linear motion with low cost of ownership over the lifetime of the system.

Material of Ball Screw Support Bearing

Ball Screw Support Bearing is an important part in the design of ball screw assemblies. They support the screw shaft, help prevent misalignment and improve overall precision. Designed to accommodate radial loads, axial loads, or a combination of both, these bearings are critical to ensuring the long-term reliability and performance of ball screw assemblies. When selecting a Ball Screw Support Bearing, it is important to consider the operating environment and application requirements. High temperature, high vibration or corrosive environments can affect bearing performance, so special materials may be required to resist these conditions. For example, bearings made of stainless steel or ceramic materials are suitable for corrosive environments, while bearings made of high thermal conductivity materials can withstand high temperatures.

The role of Ball Screw Support Bearing

Ball Screw Support Bearing is an essential component in ball screw assemblies, commonly used in various applications such as machine tools, robotics, and aerospace systems. The function of the ball screw support bearing is to support the rotating ball screw shaft and guide it during its linear motion.
Ball Screw Support Bearing are designed to carry axial and radial loads, and they are usually located at both ends of a ball screw assembly. They allow the balls to circulate smoothly between the screw and nut, helping to reduce friction and increase the efficiency of the ball screw. This reduces heat generation and reduces wear on the ballscrew and nut, resulting in longer life and improved accuracy.
There are two main types of Ball Screw Support Bearing: fixed end bearings and non-locating end bearings. Fixed end bearings are typically used in applications where the load is predominantly axial and they are located at one end of the ball screw assembly. Non-locating bearings, on the other hand, are used in applications where both axial and radial loads are present, and they are located at both ends of the ball screw assembly.
Ball Screw Support Bearing plays an important role in ensuring ball screw assembly accuracy and accuracy in addition to its load-carrying capacity. They help prevent any lateral movement or misalignment of the ballscrew, which could negatively affect the accuracy of the system. The Ball Screw Support Bearing is also designed to maintain a high degree of stiffness and stability even under heavy loads.
