Hangzhou Huaxing Kechuang Holding Group Co., Ltd. is one of the leading manufacturers and suppliers of nev transmission shaft bearing in China. As we have world-leading production equipment and strong manufacturing capabilities, we warmly welcome you to buy bulk high quality bearings at competitive price from our factory.

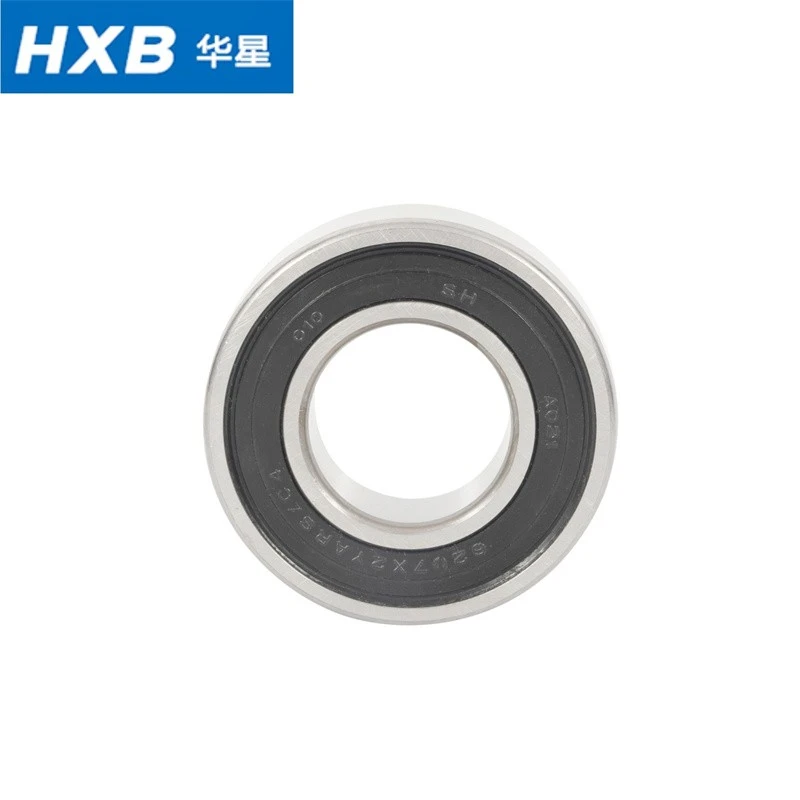

NEV Drive Shaft Bearings-special Design Deep Groove Ball Bearing
Specifications
|
Brand: |
HXB or OEM brand |
|
|
Material: |
100% Chrome Steel, SAE52100, SUJ2, 100CR6 |
|
|
Seals: |
Double rubber seals on one side |
|
|
Retainer: |
Steel cage or nylon cage |
|
|
Grease: |
Normal grease or high temperature grease |
|
|
Radial Internal clearance: |
C2/CM/C0/C3/C4/C5 |
|
|
Vibration: |
ZV2, ZV3, ZV4 |
|
|
Precision: |
Precision P0, P6, P5 |
|
|
Lubrication: |
Standard Lubrication or Special |
|
|
Heat Stabilization: |
Temperatures from -30°C up to 200 °C |
|
|
Our Clients: |
BYD, CHERRY, GEELY, CHANGAN |
HXB drive shaft bearings are designed for NEV new energy vehicle, now we have special designed seals for 6007, 6009, 6207, 6209. The most special design is the seal structure, normally there is only one seal on side, but for this series, there are two seals on one side to protect the bearing from dusty and dirty.
|
Bearing Number |
Boundary dimensions (mm) |
Load Rating |
Limit Speed |
Weight (kg) |
Application |
||||
|
d |
D |
B |
rmin |
Cr (KN) |
Cor (KN) |
rpm |
|||
|
62/30HRS |
30 |
62 |
16 |
1 |
19.5 |
11.5 |
6000 |
0.199 |
FAW HongqiH5 |
|
6206X2-2RSD |
30 |
62 |
16 |
1 |
19.5 |
11.5 |
6000 |
0.199 |
Geely Lynk06 |
|
55/30XRS |
30 |
55 |
16 |
1 |
13.8 |
8.3 |
6000 |
||
|
63007 |
35 |
62 |
20 |
1.1 |
16 |
10.3 |
2300 |
||
|
6207X2YA-2RS |
35 |
72 |
35 |
1.1 |
25.6 |
15.3 |
4000 |
BYD: Han, Song, Tang |
|
|
6207/41.2-2RS |
41.2 |
72 |
25 |
1.1 |
17.6 |
12.6 |
4000 |
0.373 |
|
|
6009-2RSD |
45 |
70 |
25 |
1.1 |
17.6 |
12.6 |
4000 |
0.324 |
|
|
TM6209X4-2RS |
45 |
72 |
25 |
1.1 |
17.6 |
12.6 |
4000 |
||
Applications
Our current new energy drive shaft bearing models are widely applied for vehicle models including Changan, Hongqi H5, BYD Han, Xpeng P7, Li Auto, Chery, GAC, BYD Tang, BYD Song, Changan Oushang X5, Changan Oushang X7 and Geely Lynk & Co 06.
We adopt customized bearing models for different car models. Featuring basically consistent structure and rich adaptable specifications, our bearings fully match the assembly demands of various vehicle models. Custom development of more new models is available.
Advantages
HXB was founded in 1995, with nearly 30 years of dedicated development, HXB now operates6 subsidiaries.
∗ 2 high-tech R&D centers
∗ 2 modern manufacturing factories - Hangzhou Yijia Precision Bearing Co., Ltd. and Zhejiang Ruiyang Bearing Technology Co., Ltd.
∗ Supported by advanced digital MES and SPC management systems
∗ IATF16949:2016, ISO9001:2015 and ISO14001 certifications
∗ High-end equipment and high-quality material
About HXB
1. Hangzhou Factory - YJB
Founded in June 2007, YJB is located in Hangzhou. As a subsidiary of HXB Group, we are a national high-tech enterprise and provincial science & technology enterprise specializing in R&D and manufacturing of high-precision, high-speed, advanced, special and professional bearings.
Core Capabilities & Intelligent Manufacturing
- Product Size: Inner diameter Φ3–Φ300mm
- Precision Classes: P2, P4 (ultra-precision grades)
- Annual Capacity: 3 million sets of precision bearings in a lean & intelligent factory
Main Products
Precision Spindle Bearings
Angular Contact Ball Bearings
Servo Motor Bearings
Vacuum Pump Bearings
Ball Screw Support Bearings
2. Huzhou Factory
In 2021, the deep groove ball bearing factory relocated from Hangzhou to Huzhou. It operate in a 10,000㎡ production facility with a team of 75 employees, focused on the R&D, and manufacturing of high-performance deep groove ball bearings.
We maintain a professional engineering and quality system to ensure stable precision and reliability.
Product Range
Series: 6000–6024, 6200–6214, 6300–6314, 6800–6824, 6900–6924
Features: High rigidity, low noise; suitable for grease lubrication or oil-mist lubrication.
6 Series X4YA-2RS (Double-lip seal) & APT Retainer Series
Features: High & low temperature resistance, superior sealing, high load capacity, long service life.
Application: New energy vehicle transmission systems.
Certificates
Exhibition
FAQ
1. What vehicle models are your drive shaft bearings suitable for?
Our new energy drive shaft bearings cover a full range of mainstream domestic new energy vehicle models, including Changan, Changan Oushang X5/X7, Hongqi H5, BYD Han/Tang/Song, Xpeng P7, Li Auto, Chery, GAC and Geely Lynk & Co 06. We support targeted bearing model matching for different vehicle platforms.
2. Do you need different bearing structures for different car models?
The core structural design remains consistent across all models. We adopt different customized specifications and dimensional parameters to match the installation size, chassis tolerance and power output requirements of different vehicle models. It features strong universality and high compatibility.
3. What are the core performance requirements for new energy drive shaft bearings?
New energy vehicle drive shaft bearings face stricter working conditions than traditional fuel vehicle bearings, requiring six core performances:
High dimensional accuracy & low runout, professional NVH noise reduction performance, excellent high-temperature thermal stability, strong anti-fatigue and impact load resistance, reliable all-weather sealing, and long service life for high-frequency driving.
4. Why do new energy drive shaft bearings require low noise and low vibration?
New energy vehicles have no engine noise, so chassis and transmission noise are more perceptible. Our bearings adopt ultra-precision grinding and optimized raceway design, effectively reducing operating vibration and abnormal noise, fully meeting the high-standard NVH comfort requirements of new energy passenger vehicles.
5. Why is high temperature resistance critical for drive shaft bearings?
New energy vehicles feature high motor speed, frequent acceleration and deceleration, and continuous high-load operation, which generate massive heat on the drive shaft. Professional high-temperature resistant structure and special grease prevent lubricant carbonization, dry friction and bearing seizure, maintaining stable precision during long-term high-speed operation.
6. What load resistance do your drive shaft bearings support?
They are designed for complex road conditions and driving states. The bearings can withstand alternating radial load, axial thrust load and instantaneous road impact load, with excellent structural rigidity and anti-fatigue performance, adapting to daily commuting, high-speed driving and bumpy road conditions.
7. How do your bearings adapt to complex driving environments?
Equipped with upgraded sealing structure, the bearings effectively isolate dust, rainwater, mud and airborne impurities. They avoid internal corrosion, grease leakage and abrasive wear, realizing stable all-weather operation and greatly extending the overall service life of the drive shaft assembly.
