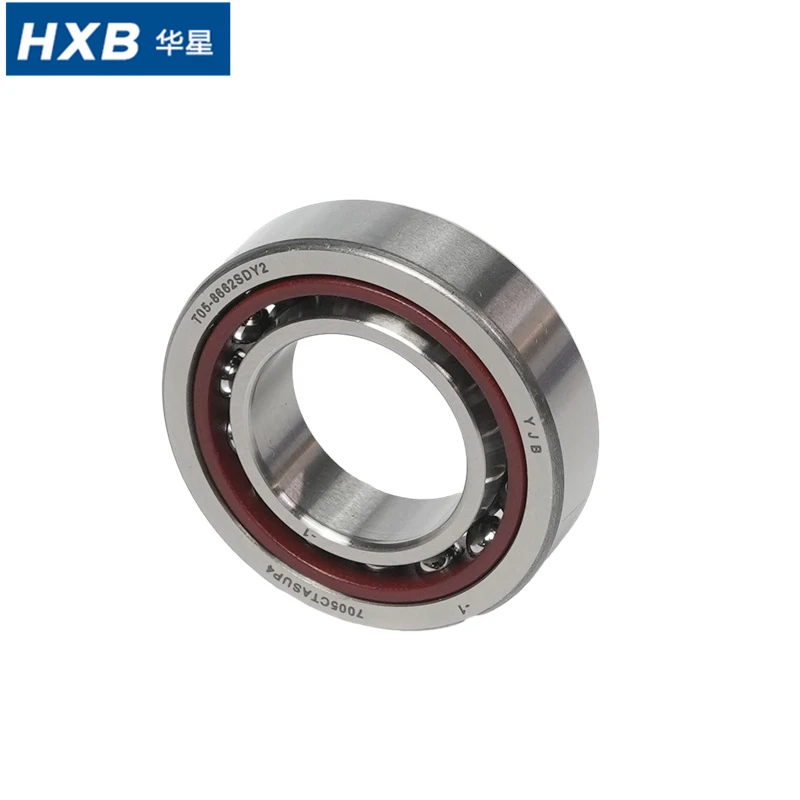

Angular Contact Ball Bearings-7005CTAP4
Specifications
|
Bearing No. |
7005CTAP4 |
|
|
Dimension |
25*47*12mm |
|
|
Lubrication |
Oil or grease |
|
|
Weight |
0.076kg |
|
|
- 100% phenolic resin cage for higher resistance and durability. |
||
|
- Supports 12000 rpm with grease, 17000 rpm with oil. |
||
|
- Our high-quality bearing is made to reduce your replacement frequency and maintenance cost. |
||
|
- Single-row, pre-lubricated, normal accuracy. |
||
|
- Single row angular contact ball bearings are designed to accommodate loads in one direction only. |
||
|
- This type of bearing is typically adjusted against a second bearing. |
||
|
- Their bearing rings have an upper and a lower shoulder and are non-separable. |
||
|
- Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance. |
||
Angular contact ball bearings (whether standard precision 7005C or P4 precision grade) can theoretically be installed and operated as a single unit, yet their applicable working conditions are restricted. Single mounting is not recommended for most load-bearing scenarios.
The 7005CTAP4 is an ultra-precision P4-grade angular contact ball bearing designed specifically for high-speed spindles, originally engineered to be used in paired arrangements. If utilized individually as an economical general-purpose angular contact bearing, its superior precision performance will be largely wasted, and inherent structural drawbacks will occur.
Features
A contact angle exists between the rolling elements and inner/outer rings of angular contact ball bearings (the contact angle of 7005C is 15°), meaning the bearing can only bear axial force in one direction under load: When subjected to radial load, an induced axial force (internal axial component force) is generated automatically.
When a single bearing runs alone: there is no counterforce to offset the internal axial force, leading to continuous axial shifting of the shaft assembly and uncontrollable axial clearance. This results in excessive rotational runout, accelerated wear, increased operating noise, and high risk of thermal seizure at high speeds.
Scenario 1: Single Bearing Installation (Only Extremely Simple Working Conditions Permitted)
✅ Strict prerequisites for acceptable single use:
Load is predominantly pure radial load with nearly no axial thrust;
Extremely low rotational speed, intermittent operation, and very low precision requirements;
Auxiliary components mounted on the opposite shaft end (deep groove ball bearings, thrust washers, sleeves) to counteract the induced axial force produced by this bearing.
Applicable niche applications: Simple conveying rollers, low-speed light-duty idle rollers, small hand-operated machinery, non-precision transmission idlers.
❌ Single mounting of precision 7005C P4 bearings is strongly discouraged: This bearing is developed for precision rotation and high-speed operation (machine tool spindles, engraving machine spindles, high-speed grinding heads), featuring low runout, high rigidity and stable temperature rise. Axial shifting cannot be restrained with a single bearing; its P4 ultra-precision performance cannot be realized at all, and the bearing will fail directly under high-speed working conditions.
Scenario 2: Standard Paired Installation (Designated Usage for This Bearing)
Standard pairing layouts for angular contact bearings eliminate bidirectional axial forces and lock axial clearance:
Back-to-Back (DB) Arrangement: Optimal rigidity, powerful resistance to overturning moment; most widely adopted for machine tool spindles.
Face-to-Face (DF) Arrangement: Slightly better self-aligning performance, commonly used for lengthy shafts.
Tandem (DT) Arrangement: For bearing extremely large unidirectional axial loads.
Combinations of 2, 3 or 4 bearings can be pre-mounted with preload to suit high-speed precision spindles.
-
Differences Between General Angular Contact Bearings and 7005C TA P4
| Comparison Item | Economical General 7005 Angular Contact Bearing (P0/P6 Standard Precision) | 7005C TA P4 Precision High-Speed Bearing |
|---|---|---|
| Positioning | Transmission for general machinery, low-speed reducers, fans | CNC spindles, high-speed grinding equipment, precision rotary tooling fixtures |
| Maximum Rotational Speed | Relatively low, no strict temperature rise limits | Extremely high DN value, suitable for operation up to tens of thousands of revolutions per minute |
| Precision | Ordinary rotational precision, large runout tolerances | P4 ultra-precision grade, minimal radial and axial runout |
| Cage Type | Mostly stamped steel cages | TA: Solid phenolic resin cage, wear-resistant, low friction, tailored for high-speed operation |
| Preload Compatibility | Preload assembly rarely applied | Fine light/medium preload available to enhance rigidity |
| Suitability for Single Use | Acceptable occasionally under low speed & light load | Strictly prohibited for high-speed precision applications |
-
Summary & Recommendations
If applied to ordinary mechanical structures with low speed, light radial load and zero axial force: Single installation is allowable, but axial limiting structures must be fitted on the opposite shaft end to offset internal axial force.
For applications requiring continuous operation, relatively high rotational speed, rotational precision or slight axial load: Two or more bearings must be used in paired configuration.
As a precision spindle bearing, the optimal application mode for 7005CTAP4 is always paired installation with preloading.
Applications
Applications of 7005CTAP4 Bearings
CNC machine tool main spindles
Engraving machine & PCB high-speed spindles
Precision grinding machines & high-speed grinding heads
Optical instruments, precision rotary tables
Automated equipment rotary fixtures
Dental high-speed handpieces
Robot small joints & miniature high-speed rotary units
