Deep Groove Ball Bearing With Snap Ring

Hangzhou Huaxing Kechuang Holding Group Co., Ltd. is one of the leading manufacturers and suppliers of deep groove ball bearing with snap ring in China. As we have world-leading production equipment and strong manufacturing capabilities, we warmly welcome you to buy bulk high quality bearings at competitive price from our factory.

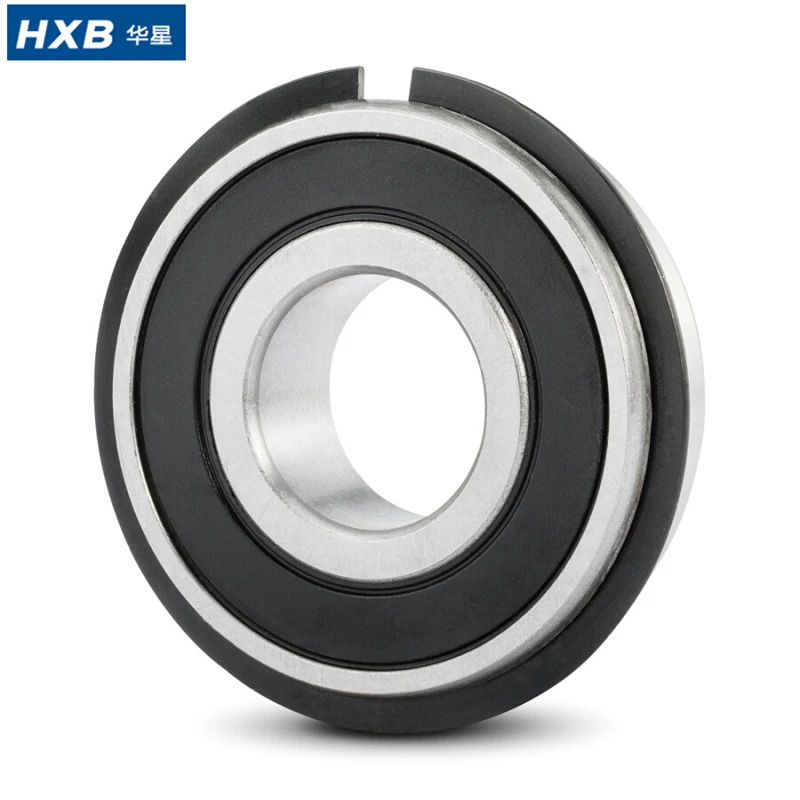

Single Row Deep Groove Ball Bearing With Snap Ring

For bearing model 6205-2RSNR: the suffix NR means the bearing outer ring is machined with a snap ring groove, pre-assembled with a complete snap ring upon delivery.

One-way axial positioning & prevention of bearing axial movement (primary function) The snap ring fits into the groove on one side of the bearing outer ring. After the bearing is pressed into the housing, the snap ring abuts against the shoulder of the housing, stopping the bearing from sliding axially inward or outward and dislodging under vibration and axial loads during operation. It maintains rotational concentricity, reduces vibration and noise, and extends bearing service life.

Simplify housing structure & eliminate extra locking components Conventional axial bearing fixing requires shoulders on both sides of the housing plus end caps or lock nuts for clamping. With a snap ring, only one shoulder is needed inside the housing; the other side is secured by the snap ring. No extra end covers, screws or lock nuts are required, greatly cutting machining procedures, assembly time and total component count for machinery.

Control axial clearance precisely It can withstand moderate bidirectional axial loads and limit bearing axial play for stable positioning.

Easy disassembly & maintenance The snap ring can be removed with circlip pliers to push the bearing out of the housing conveniently for inspection and repair.

Only one internal shoulder can be machined inside the bearing housing Compact space constraints or integrally cast housings make it impossible to create retaining shoulders on both sides. The snap ring serves as the secondary axial stop. Typical applications: electric motor end caps, fan scroll casings, small gearboxes.

Equipment runs under continuous vibration with alternating axial forces Conveyor rollers, fan impellers, agricultural machinery, power tools and automotive auxiliary transmission parts. Severe vibration will cause standard bearings without snap rings to shift and slip inside housings easily, hence snap rings are mandatory for anti-displacement purposes.

Mass production requiring simplified assembly & cost reduction Mass-manufactured motors, water pumps and conveyor rollers adopt snap ring designs to boost assembly efficiency and lower overall production costs.

Strict requirements for stable axial positioning without offset Small spindles, transport rollers and pump shafts. Bearing misalignment would lead to shaft eccentricity, oil/water seal leakage, which is avoided via snap ring locking.

Subjected to moderate one-way axial thrust Axial pulling force generated by belt pulleys and sprockets during power transmission is counteracted by the snap ring to prevent the bearing from being forced out of the seat.

∗ 30 years of dedicated development

HXB was founded in 1995, with nearly 30 years of dedicated development, HXB now operates6 subsidiaries.



∗ 2 high-tech R&D centers

∗ 2 modern manufacturing factories - Hangzhou Yijia Precision Bearing Co., Ltd. and Zhejiang Ruiyang Bearing Technology Co., Ltd.

∗ Supported by advanced digital MES and SPC management systems

∗ IATF16949:2016, ISO9001:2015 and ISO14001 certifications

∗ High-end equipment and high-quality material

1. Hangzhou Factory - YJB

Founded in June 2007, YJB is located in Hangzhou. As a subsidiary of HXB Group, we are a national high-tech enterprise and provincial science & technology enterprise specializing in R&D and manufacturing of high-precision, high-speed, advanced, special and professional bearings.

Core Capabilities & Intelligent Manufacturing

• Product Size: Inner diameter Φ3–Φ300mm
• Precision Classes: P2, P4 (ultra-precision grades)
• Annual Capacity: 3 million sets of precision bearings in a lean & intelligent factory
• Equipment Investment: Over RMB 3 million in world-leading precision testing instruments
• Digital Transformation: with full deployment of MESYS bearing design platform, ERP, MES, WMS, SPC real-time quality monitoring and OA systems, building a benchmark smart manufacturing plant.

2. Huzhou Factory

In 2021, the deep groove ball bearing factory relocated from Hangzhou to Huzhou. It operate in a 10,000㎡ production facility with a team of 75 employees, focused on the R&D, and manufacturing of high-performance deep groove ball bearings.

We maintain a professional engineering and quality system to ensure stable precision and reliability.

Engineering Team: 4 bearing design & process engineers, accounting for 5% of staff.

Quality Team: 15 quality personnel, including 2 quality engineers, 20% of staff, covering incoming inspection, in-process control and final testing.
