Full Complements Ball Bearings

Hangzhou Huaxing Kechuang Holding Group Co., Ltd. is one of the leading manufacturers and suppliers of full complements ball bearings in China. As we have world-leading production equipment and strong manufacturing capabilities, we warmly welcome you to buy bulk high quality bearings at competitive price from our factory.

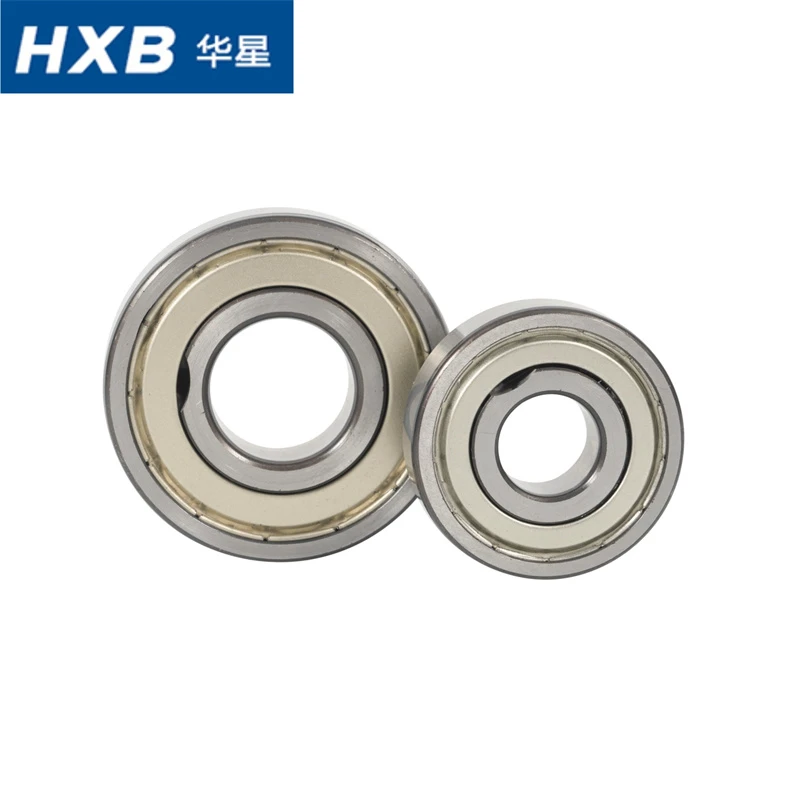

Single Row Deep Groove Ball Bearing With Full Complements

No cage installed, maximum quantity of balls filled inside raceways

Higher radial dynamic & static load capacity, 30%~60% heavier load than standard caged bearings of identical dimensions

Excellent rigidity and great resistance to shock and vibration loads

Larger internal grease storage space for long-term lubrication & maintenance-free service

Capable of bearing slight bidirectional axial loads besides heavy radial loads

Simplified structure, cost-effective with fewer components

Full complement deep groove ball bearings have obvious performance advantages compared with conventional caged bearings of the same dimensional specification:

Superior Load Capacity: The increased number of rolling balls boosts radial dynamic and static load by 30%–60%, effectively bearing heavy continuous radial loads.

High Rigidity & Impact Resistance: Dense steel ball arrangement optimizes force distribution, delivering excellent stability against vibration, shock and alternating loads.

Extended Lubrication Cycle: Without a cage structure, the internal cavity provides larger grease storage space, supporting long-term maintenance-free operation under harsh working environments.

Simple & Cost-Effective Structure: Fewer components simplify assembly and reduce failure rates, achieving stable performance with lower comprehensive cost.

Dual-direction Auxiliary Axial Load: Retains the deep groove raceway design, capable of bearing small bidirectional axial loads while bearing main radial loads.

Limitations

Low Speed Only: Without cage guidance, steel balls contact and rub against each other. High-speed operation will cause severe heat, abnormal wear and bearing seizure.

Limited Axial Bearing Capacity: The outer ring ball filling slot breaks the complete raceway contour, so the bearing cannot withstand large or pure axial thrust loads.

Higher Operating Friction: Compared with standard caged bearings, it has larger running torque and higher operating temperature rise.

• Kiln cars & transfer carts – support heavy loads at 200–450°C, slow continuous movement.

• Roller hearth furnaces – guide rolls and conveyor rollers under high heat and dust.

• Tunnel kilns & industrial ovens – dampers, door hinges, and auxiliary rotating parts.

• Ceramic/brick kilns – firing zone conveyors and support rollers at 300–500°C.

• High-temperature fans & blowers – furnace circulation fans with limited lubrication access.

∗ 30 years of dedicated development

HXB was founded in 1995, with nearly 30 years of dedicated development, HXB now operates6 subsidiaries.



∗ 2 high-tech R&D centers

∗ 2 modern manufacturing factories - Hangzhou Yijia Precision Bearing Co., Ltd. and Zhejiang Ruiyang Bearing Technology Co., Ltd.

∗ Supported by advanced digital MES and SPC management systems

∗ IATF16949:2016, ISO9001:2015 and ISO14001 certifications

∗ High-end equipment and high-quality material

1. Hangzhou Factory - YJB

Founded in June 2007, YJB is located in Hangzhou. As a subsidiary of HXB Group, we are a national high-tech enterprise and provincial science & technology enterprise specializing in R&D and manufacturing of high-precision, high-speed, advanced, special and professional bearings.

Core Capabilities & Intelligent Manufacturing

• Product Size: Inner diameter Φ3–Φ300mm
• Precision Classes: P2, P4 (ultra-precision grades)
• Annual Capacity: 3 million sets of precision bearings in a lean & intelligent factory
• Equipment Investment: Over RMB 3 million in world-leading precision testing instruments
• Digital Transformation: with full deployment of MESYS bearing design platform, ERP, MES, WMS, SPC real-time quality monitoring and OA systems, building a benchmark smart manufacturing plant.

2. Huzhou Factory

In 2021, the deep groove ball bearing factory relocated from Hangzhou to Huzhou. It operate in a 10,000㎡ production facility with a team of 75 employees, focused on the R&D, and manufacturing of high-performance deep groove ball bearings.

We maintain a professional engineering and quality system to ensure stable precision and reliability.

Engineering Team: 4 bearing design & process engineers, accounting for 5% of staff.

Quality Team: 15 quality personnel, including 2 quality engineers, 20% of staff, covering incoming inspection, in-process control and final testing.
