Hangzhou Huaxing Kechuang Holding Group Co., Ltd. is one of the leading manufacturers and suppliers of hybrid spindle bearings hcb7205-c-2rsd-t-p4s in China. As we have world-leading production equipment and strong manufacturing capabilities, we warmly welcome you to buy bulk high quality bearings at competitive price from our factory.

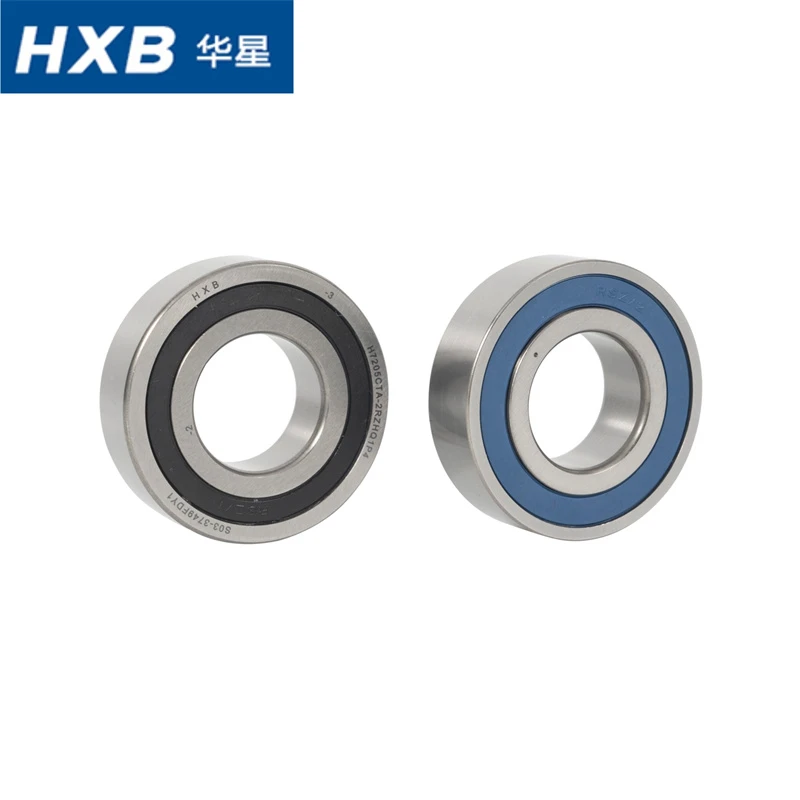

Hybrid Spindle Bearings-HCB7205-C-2RSD-T-P4S
Exchange: HCB7205C-2RSD-P4S(F·A·G), H7205C-2RZ-HQ1-P4S, 7205CSN24TRV1VP4(NSK), S7205CDHC/P4A (SKF)
Technical Data
|
Inside Ø (mm): |
25 |
|
|
Outside Ø (mm): |
52 |
|
|
Width (mm): |
15 |
|
|
Tolerance for inside-Ø (mm): |
0/-0,005 |
|
|
Tolerance for outside-Ø (mm): |
0/-0,007 |
|
|
Tolerance for width (mm): |
0/-0,12 |
|
|
Tolerance for shaft da (mm): |
0,21/-0,21 |
|
|
Contact Angle: |
15° |
|
|
Rows Of Balls: |
Single Row |
|
|
Seal: |
NBR |
|
|
Ring Material: |
GCr15, 100Cr6, SUJ2 |
|
|
Rolling Element Material: |
Ceramics |
|
|
Cage Material: |
Phenolic Resin |
|
|
Tolerance Class: |
P4S |
|
|
Lubrication: |
Greased with L252 |
|
|
Type of lubrication: |
Grease |
|
|
Product weight: |
0,13 kg |
Features
Applications
Hybrid spindle bearings-HCB7205C-2RSD-T-P4S-UL used for Precision high-speed machine tool spindles
CNC machining centers, high-speed milling machines, internal/external grinders, high-speed engraving machines.
- High-speed rotary automation equipment
High-speed PCB routing spindles, printed circuit board drilling spindles.
- Precision measuring & lab instruments
High-speed rotary testing fixtures, precision optical inspection spindles.
- Other high-speed industrial fields
High-speed dental hand piece bearings, high-speed turbo machinery, aerospace precision rotary components, high-speed motor spindles.
Advantages
HXB was founded in 1995, with nearly 30 years of dedicated development, HXB now operates6 subsidiaries.
∗ 2 high-tech R&D centers
∗ 2 modern manufacturing factories - Hangzhou Yijia Precision Bearing Co., Ltd. and Zhejiang Ruiyang Bearing Technology Co., Ltd.
∗ Supported by advanced digital MES and SPC management systems
∗ IATF16949:2016, ISO9001:2015 and ISO14001 certifications
∗ High-end equipment and high-quality material
Certificates
Exhibition
FAQ
Q1: What is your minimum order quantity?
A: Small trial orders and sample orders are acceptable. Bulk orders enjoy more favorable wholesale prices
Q2: What is your production lead time?
A: Standard models have sufficient stock with fast delivery. Customized bearings take 7–15 working days according to order quantity and technical requirements
Q3: How to choose the right bearing model for my equipment? A: You can provide your working speed, load, temperature and application environment. Our engineer team will recommend the most suitable bearing solution for you.
Q4: Do you provide technical support after purchase?
A: We provide professional technical guidance for bearing installation, maintenance and model selection for all customers.
Q5: Do you provide test reports or certificates?
A: We can provide batch inspection reports, material certificates and factory qualification documents to support customer customs clearance and quality audit.
