Hangzhou Huaxing Kechuang Holding Group Co., Ltd. is one of the leading manufacturers and suppliers of high precision bearings h7014ctynhq1sulp4 in China. As we have world-leading production equipment and strong manufacturing capabilities, we warmly welcome you to buy bulk high quality bearings at competitive price from our factory.

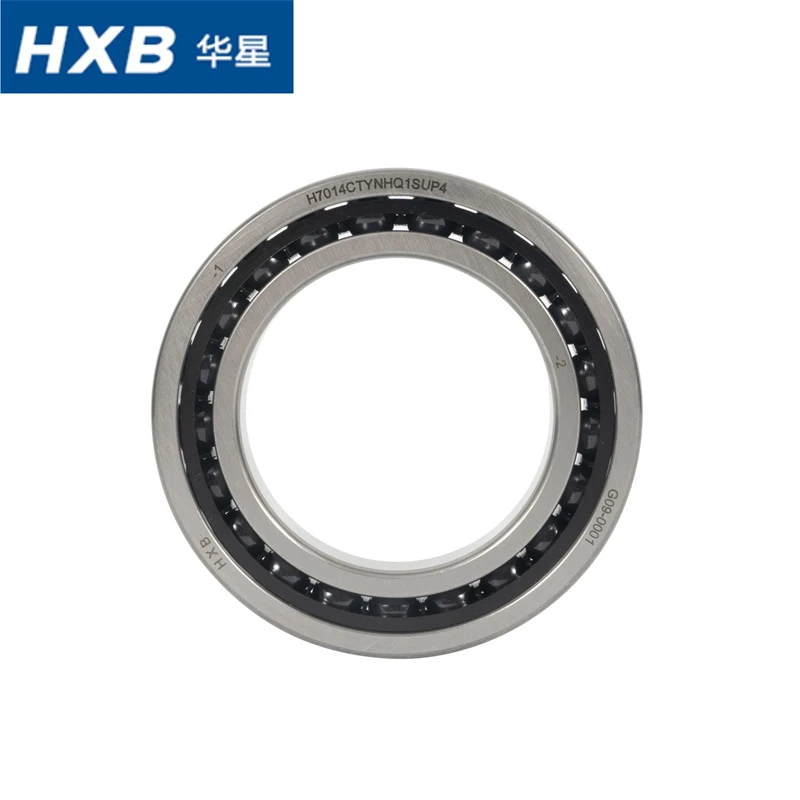

High Precision Bearings-H7014CTYNHQ1SULP4
Exchange: HCB7016E-2RSD-P4S(FAG), H7016AC-2RZ-HQ1-P4S, 7016CSN24TRV1VDTP4(NSK), S7016CDGAHC/P4A (SKF)
| Brand | Complete Model | Notes |
|---|---|---|
| NSK (Original) | H7014CTYNHQ1SULP4 | NSKHPS series, HQ1 heat‑stabilized treatment, hybrid ceramic balls, TYN polyamide cage, SU‑L light preload, P4 precision |
| FAG (Schaeffler) | HCB7014‑C‑T‑P4S‑UL | HCB: hybrid ceramic balls; T: PA66 polyamide cage; UL: light preload universal match; P4S precision class |
| SKF | 7014CEGA/HCP4A | HC: hybrid ceramic balls; EGA: PA polyamide cage; P4A super precision, universal match light preload |
| NTN | H7014C‑GL‑SULP4 | H: hybrid ceramic balls; GL resin cage; SU‑L light preload, P4 universal match |
| KOYO | 7014C‑HY‑SUL‑P4 | HY: hybrid ceramic balls; TY resin cage; SU‑L light preload, P4 precision |
Technical Data
|
Inside Ø (mm): |
70 |
|
|
Outside Ø (mm): |
110 |
|
|
Width (mm): |
20 |
|
|
Contact Angle: |
15° |
|
|
Ring Material: |
GCr15, 100Cr6, SUJ2 |
|
|
Rolling Element Material: |
Ceramics |
|
|
Cage Material: |
Phenolic Resin |
|
|
Tolerance Class: |
P4S |
|
|
Lubrication: |
Greased with L252 |
|
|
Product weight: |
0,593 kg |
|
Type |
Dimensions |
Abutment dimension |
Load rating |
Speed value |
Weight |
|||||||||
|
mm |
mm |
N |
1/min |
(kg) |
||||||||||
|
d |
D |
B |
r (min) |
r1 (min) |
Da |
da |
ra (max) |
ra1 (max) |
Cr |
Cor |
Oil |
Grease |
||
|
H71914C-2RZ HQ1 |
70 |
100 |
16 |
1.0 |
0.3 |
93.4 |
78.5 |
0.6 |
0.3 |
13000 |
7400 |
25000 |
18500 |
0.346 |
|
H71914AC-2RZ HQ1 |
100 |
16 |
1.0 |
0.3 |
93.4 |
78.5 |
0.6 |
0.3 |
12400 |
7050 |
22500 |
17000 |
0.346 |
|
|
H7014C-2RZ HQ1 |
110 |
20 |
1.1 |
1.0 |
100.8 |
81.1 |
1.1 |
0.6 |
23700 |
12100 |
24000 |
18000 |
0.593 |
|
|
H7014AC-2RZ HQ1 |
110 |
20 |
1.1 |
1.0 |
100.8 |
81.1 |
1.1 |
0.6 |
22700 |
11500 |
21500 |
16000 |
0.593 |
|
C - Contact Angle
C: 15° contact angle, optimized for ultra-high speed & low heat generation. The best angle choice for long-duration high-RPM spindle operation.
SN24 or HQ1- Hybrid Ceramic Material Code (Core Feature)
SN24: NSK exclusive code forSi₃N₄ silicon nitride ceramic balls + steel raceway hybrid structure
Features ultra-light weight, low thermal expansion, complete electrical insulation, ultra-low temperature rise, which is the key configuration for NSK ultra-high-speed HPS spindle bearings.
T - Cage Type
T: High-stability resin cage, ball-guided structure
High temperature resistance, low friction deformation, specially optimized for ceramic ball high-speed rolling guidance.
RV1 - Vibration & Noise Grade
RV1: Ultra-low vibration & ultra-low noise grade
Strict raceway roundness and surface roughness control, minimizes micro-jitter during ultra-high-speed operation, suitable for ultra-fine finishing processing.
P4 - Precision Grade
7016CSN24TRV1VDTP4 is an NSK HPS ultra-high-speed hybrid ceramic super-precision spindle bearing. With 15° high-speed angle, silicon nitride ceramic balls, resin high-speed cage, ultra-low vibration structure and P4 super precision, it is professionally designed for long-term continuous ultra-high-speed, low-temperature-rise, low-noise high-end finishing spindles.
Features
1. Hybrid build: Steel rings + Si₃N₄ ceramic balls
2. Lightweight ceramic cuts high-speed centrifugal load
3. High hardness, wear-proof & longer service life
4. Low thermal expansion, stable preload at high RPM
5. Insulated ceramic avoids stray current corrosion
6. Higher DN value for ultra-high-speed spindle use
7. Less friction & heat, sustain long-term precision
8. Better resistance to moisture, weak acid & oil aging
Applications
Applicable Machine Tools & Industrial Equipment
Combined with its core advantages of ultra-high speed, ultra-low vibration, low heat generation, electric insulation and long-cycle precision stability, this bearing is exclusively matched with high-end precision finishing equipment that requires continuous high-speed operation and strict surface machining quality:
High-speed Vertical & Horizontal Machining Centers – Especially HSK63/HSK80 high-speed spindle models for mold precision finishing, long-hour unmanned production.
Ultra-precision Grinding Machine Tools – Including surface grinders, internal/external cylindrical grinders, and tool grinders, supporting mirror-level fine grinding processing.
High-end High-frequency Spindle Equipment – Variable frequency high-power electric spindles used for metal high-speed cutting, drilling and tapping continuous finishing.
Mold High-precision Processing Machine Tools – Precision engraving and milling machines, high-speed finish milling machines for 3C mold, automotive mold and medical mold ultra-fine processing.
Precision Automation & Special Processing Equipment – High-speed precision rotating units for aerospace parts finishing, semiconductor auxiliary processing and high-precision testing equipment.
Application Exclusion: Not suitable for heavy-load roughing machines, impact-load equipment and dusty/poor-sealed industrial environments, as it is optimized for high-speed, light-medium load and high-cleanliness precision finishing scenarios.
HXB Introduction
Established in May 1995, Hangzhou Huaxing Kechuang Holding Group (HXB, formerly known as Hangzhou Huaxing Bearing Co.,Ltd) is a professional technology enterprise integrating R&D, production and sales. Over 30 years of development, we run two major manufacturing bases: Hangzhou Yijia Precision Bearing Co.Ltd. and Zhejiang Ruiyang Bearing Technology Co.,Ltd.
HXB focuses on high-end bearings such high precision bearings, deep groove ball bearings and NEV bearings. Our products widely applied in intelligent manufacturing, 3C industry, CNC centers, precision machinery, robots, aerospace, motors and household appliances.
Supported by advanced digital MES & SPC management systems, we have passed ISO9001:2015, IATF16949:2016 and ISO14001 international standard certifications, ensuring reliable product quality and standardized production.
We uphold rigorous craftsmanship and innovative development, committed to delivering superior bearing solutions and creating long-term value for global partners.
Advantages
HXB was founded in 1995, with nearly 30 years of dedicated development, HXB now operates6 subsidiaries.
∗ 2 high-tech R&D centers
∗ 2 modern manufacturing factories - Hangzhou Yijia Precision Bearing Co., Ltd. and Zhejiang Ruiyang Bearing Technology Co., Ltd.
∗ Supported by advanced digital MES and SPC management systems
∗ IATF16949:2016, ISO9001:2015 and ISO14001 certifications
∗ High-end equipment and high-quality material
About HXB
Hangzhou Factory - YJB
Founded in June 2007, YJB is located in Hangzhou. As a subsidiary of HXB Group, we are a national high-tech enterprise and provincial science & technology enterprise specializing in R&D and manufacturing of high-precision, high-speed, advanced, special and professional bearings.
- Product Size: Inner diameter Φ3–Φ300mm
- Precision Classes: P2, P4 (ultra-precision grades)
- Annual Capacity: 3 million sets of precision bearings in a lean & intelligent factory
- Digital Transformation: with full deployment of MESYS bearing design platform, ERP, MES, WMS, SPC real-time quality monitoring and OA systems, building a benchmark smart manufacturing plant.
Certificates
Exhibition
FAQ
Q1: What industries are your bearings suitable for?
A: Widely applied in CNC machine tools, automation equipment, new energy vehicles, motors, fans, pumps, medical equipment and precision industrial machinery.
Q2: How do you guarantee bearing quality consistency?
A: We implement full-process quality control, including incoming material inspection, in-process dimensional monitoring, noise testing, precision detection and final batch sampling inspection
Q3: Do you support customized bearing solutions?
A: Yes. We support custom size, clearance, grease, sealing type, surface treatment and logo printing according to customer drawings and application scenarios.
Q4: Can your bearings work in high temperature or low temperature environments?
A: Our bearings support wide temperature adaptation. With special heat-resistant grease and stable material properties, they perform stably in both high-heat and low-temperature working scenarios.
Q5: How to deal with defective products?
A: If any quality problem caused by manufacturing occurs, we provide free replacement or refund service.
