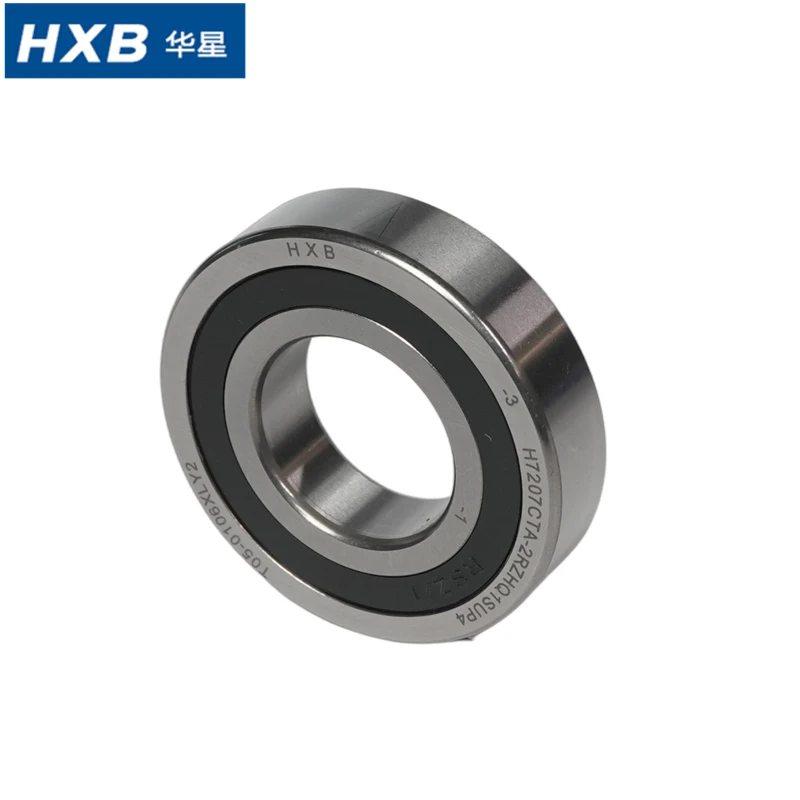

Hybrid Ceramic Bearings HCB7207C-2RSD-T-P4

Hangzhou Huaxing Kechuang Holding Group Co., Ltd. is one of the leading manufacturers and suppliers of hybrid ceramic bearings hcb7207c-2rsd-t-p4 in China. As we have world-leading production equipment and strong manufacturing capabilities, we warmly welcome you to buy bulk high quality bearings at competitive price from our factory.



Hybrid Ceramic Bearings-HCB7207-C-2RSD-T-P4S

Exchange: HCB7207C-2RSD-P4S(F·A·G), H7207C-2RZ-HQ1-P4S, 7207CSN24TRV1VP4(NSK), S7207CDHC/P4A (SKF)





Inside Ø (mm):	25
Outside Ø (mm):	52
Width (mm):	15
Product weight:	0,13 kg
Exchange	H7H7207C-2RZ-HQ1-P4S, 7205CSN24TRV1VP4(NSK), S 7205CDHC/P4A (SKF)







1. High-Performance Hybrid Ceramic Structure

Adopting premium steel raceways matched with low-density Si₃N₄ ceramic balls, this structure effectively reduces centrifugal force and rolling inertia during extreme high-speed operation. The non-conductive ceramic rolling elements provide reliable electrical insulation, completely eliminating stray current corrosion, electric pitting and raceway ripples commonly found in all-steel bearings. It achieves lower friction coefficient and superior thermal stability compared with conventional precision bearings.

2. UL Light Preload Configuration for Ultra-Smooth Operation

Equipped with standardized UL light preload, the bearing maintains appropriate internal clearance balance. It effectively suppresses high-speed vibration and running noise without excessive preload friction heat. This design prioritizes ultra-high-speed performance and rotational smoothness, perfectly fitting long-duration continuous finishing spindle operation scenarios that require low vibration and high precision consistency.

3. Reinforced T-Type High-Speed Resin Cage

The optimized T-type cage structure features enhanced rigidity, anti-deformation capability and high-temperature resistance. It stably guides ceramic balls under extreme high RPM, avoiding collision friction and cage fatigue failure. The low-resistance pocket design minimizes sliding friction, further reducing heat accumulation and ensuring stable dynamic performance during long-cycle high-speed cycling.

4. 2RSD Double-Sided Non-Contact Sealed Design

The double-sided non-contact sealing structure produces nearly zero running resistance and no speed loss, fully releasing the bearing's extreme speed potential. It effectively blocks fine dust, moisture and workshop contaminants from entering the internal raceway, protecting precision rolling surfaces. The sealed structure retains internal high-performance lubricant and prevents grease aging, greatly extending service life in standardized workshop environments.

5. P4S Upgraded Super Precision Grade

Manufactured under strict P4S ultra-precision standards, it achieves ultra-low radial and axial runout, ultra-smooth raceway finish and consistent dimensional tolerance. Higher precision stability than standard P4 bearings ensures minimal micro-jitter during ultra-high-speed finishing, sustaining superior machining accuracy and surface finish for high-end precision processing equipment.

6. Excellent Low-Temperature & Environmental Adaptability

This hybrid ceramic bearing supports a wide working temperature range from -30°C to 80°C, with outstanding low-temperature structural stability and thermal shock resistance. It resists lubricant aging, mild humidity and continuous high-speed thermal fatigue, delivering reliable and consistent performance under long-term variable working conditions.







With ultra-high-speed capability, low-vibration smooth operation, insulation anti-corrosion and P4S super precision, HCB7207C-2RSD-T-P4S-UL is widely applied in medium-sized high-end ultra-precision spindle and high-speed rotating equipment:

High-Speed Precision Machining Spindles: Ultra-high-speed finishing machining centers, precision milling spindles, mold fine-processing spindle systems

High-Precision Grinding Equipment: High-speed surface grinders, internal/external precision grinding spindles, ultra-fine grinding processing machines

3C & Precision Automation Equipment: High-speed drilling and tapping spindles, electronic product precision cutting and finishing shafts

Variable-Frequency Motor Spindles: High-speed servo motor spindles requiring insulation and anti-electric corrosion performance

High-End General Industrial High-Speed Equipment: Precision compressors, high-speed rotating machinery, textile high-speed spinning spindles and automated precision transmission units





Established in 1995, as a leading ball bearing manufacturer in China, HXB offers more than 1,000 kinds of ball bearing to fulfill our customers' needs. With excellent production team and technical team, we can supply high quality products consistently.

Our production capacity:

• Deep groove ball bearings: 34 production lines, 30,000,000pcs per year
• Angular contact ball bearings: 14 production lines, 3,000,000pcs per year

Application fields: electric motors, pumps, textile machine, household appliance, machine tool spindle, CNC machine, healthcare industry, intelligence manufacturing etc.

Certificate: IATF16949:2016, ISO9001:2015

We uphold rigorous craftsmanship and innovative development, committed to delivering superior bearing solutions and creating long-term value for global partners.







HXB has a set of more than 10 years of technical optimization precipitation, with the international advanced development concept of the development process, with the ability of design analysis, engineering production, test evaluation and technical management.

It has dozens of national patents. The technicians are proficient in using computer aided design software. PLM system is being progressively implemented.



Experimental Testing / Testing Ability

HXB has a comprehensive laboratory (including durability, physical and chemical, high and low temperature cycle, enamel-wire laboratory, performance, gear, magnetic observation room), with dozens of various equipment and instruments, with the ability to test and verify the performance of new products and components such as magneto, starter motor, generator electronic products. We will support you in selecting the best spindle bearings for your application.











∗ 2 modern manufacturing factories - Hangzhou Yijia Precision Bearing Co., Ltd. and Zhejiang Ruiyang Bearing Technology Co., Ltd.

∗ Supported by advanced digital MES and SPC management systems





∗ IATF16949:2016, ISO9001:2015 and ISO14001 certifications

∗ High-end equipment and high-quality material













The popularization of hybrid ceramic spindle bearings has achieved comprehensive technical upgrades for modern high-precision machining, solving multiple bottleneck pain points of traditional all-steel bearings and promoting the overall improvement of machining efficiency, precision stability and equipment durability.

1. Breakthrough in Ultra-High-Speed Machining Limits Compared with all-steel bearings, lightweight ceramic rolling elements effectively reduce rotational inertia and centrifugal expansion. They support sustained ultra-high-speed operation without excessive heat accumulation, greatly improving the cutting and grinding efficiency of finishing equipment. This realizes high-efficiency and high-precision integrated processing, which cannot be achieved by conventional steel bearings.

2. Complete Solution to Spindle Electric Corrosion Failure Ceramic materials have non-conductive properties, which thoroughly isolate stray current and variable-frequency shaft current inside the spindle. They eliminate common failures such as raceway pitting, ripple wear and abnormal running noise caused by electric corrosion, stabilizing the long-term working accuracy of variable-frequency motor spindles.

3. Stable Machining Accuracy for Long-Term Continuous Production Ceramic balls feature ultra-low thermal expansion and excellent wear resistance. They effectively suppress thermal deformation and precision attenuation during long-time high-speed cycling operation, maintaining consistent spindle preload and rotational accuracy. It greatly reduces workpiece dimensional deviation and surface finish errors, lowering the defective rate of precision processing.

4. Lower Equipment Maintenance Cost & Higher Operational Stability Hybrid ceramic structures have 2–5 times longer service life than traditional all-steel bearings. They resist high-temperature fatigue, lubricant aging and micro abrasion, reducing frequent bearing replacement and equipment downtime. It significantly improves the continuous operation capability of automated precision production lines and reduces overall operating costs.

5. Stronger Adaptability to Modern Complex Working Conditions With inherent insulation, anti-corrosion and low-friction characteristics, hybrid ceramic bearings adapt to variable load, high-temperature and slightly humid workshop environments. They perfectly match the high-standard operation requirements of modern high-end molds, 3C ultra-fine processing and medical precision equipment, promoting the upgrading of precision manufacturing technology.
