Hangzhou Huaxing Kechuang Holding Group Co., Ltd. is one of the leading manufacturers and suppliers of precision angular contact ball bearings b71907-c-t-p5 in China. As we have world-leading production equipment and strong manufacturing capabilities, we warmly welcome you to buy bulk high quality bearings at competitive price from our factory.

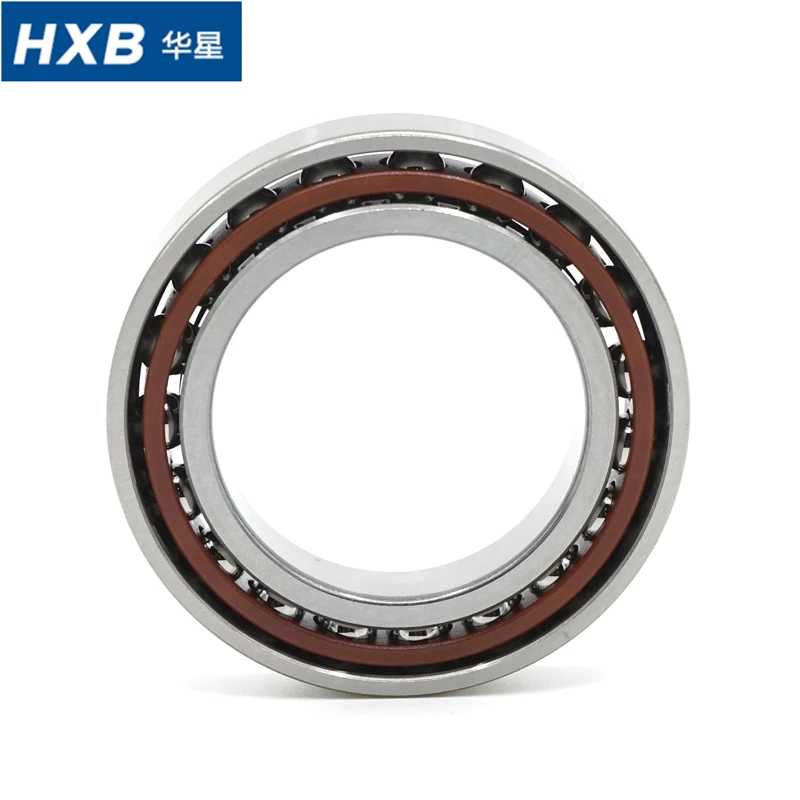

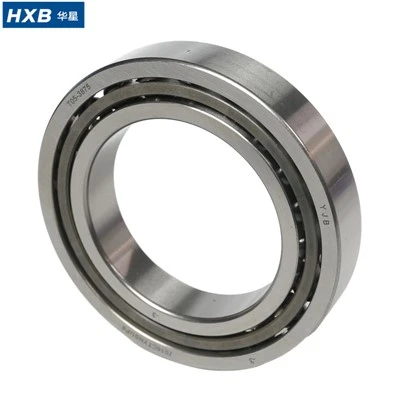

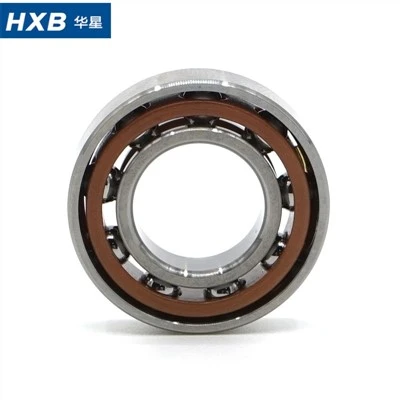

Precision Angular Contact Ball Bearings B71907C-T-P5
Technical Data
|
Inside Ø (mm): |
35 |
|
|
Outside Ø (mm): |
55 |
|
|
Width (mm): |
10 |
|
|
Contact Angle: |
15° |
|
|
Cage Material: |
Phenolic Resin |
|
|
Tolerance Class: |
P5 |
|
|
Product weight: |
0.075 kg |
|
|
Exchange |
71907CTRP5 (NSK), 71907CD/P5 |
| Type | Dimensions | Abutment dimension | Weight | Load rating | Speed value | |||||||||
| mm | mm | N | r/min | |||||||||||
| d | D | B | r(min) | r1(min) | da | Da | ra(max) | ra1(max) | m | C | C0r | Noil | Ngrease | |
| 71807 AC | 35 | 47 | 7 | 0.3 | 0.3 | 38.0 | 44.0 | 0.3 | 0.15 | 0.028 | 3750 | 3400 | 35000 | 26000 |
| 71907 C | 35 | 55 | 10 | 0.6 | 0.3 | 40.0 | 50.5 | 0.6 | 0.15 | 0.075 | 10900 | 8700 | 38000 | 28500 |
| 71907 AC | 35 | 55 | 10 | 0.6 | 0.3 | 40.0 | 50.5 | 0.6 | 0.15 | 0.075 | 10300 | 8200 | 32000 | 24000 |
| 7007 C | 35 | 62 | 14 | 1.0 | 0.6 | 41.0 | 56.0 | 1.0 | 0.3 | 0.149 | 20600 | 15500 | 35000 | 26000 |
| 7007 AC | 35 | 62 | 14 | 1.0 | 0.6 | 41.0 | 56.0 | 1.0 | 0.3 | 0.149 | 19600 | 14800 | 30000 | 22500 |
| 7207 C | 35 | 72 | 17 | 1.1 | 0.6 | 43.0 | 64.0 | 1.0 | 0.6 | 0.290 | 35000 | 24300 | 32000 | 24000 |
| 7207 AC | 35 | 72 | 17 | 1.1 | 0.6 | 43.0 | 64.0 | 1.0 | 0.6 | 0.290 | 33500 | 23200 | 27000 | 20000 |
Applications

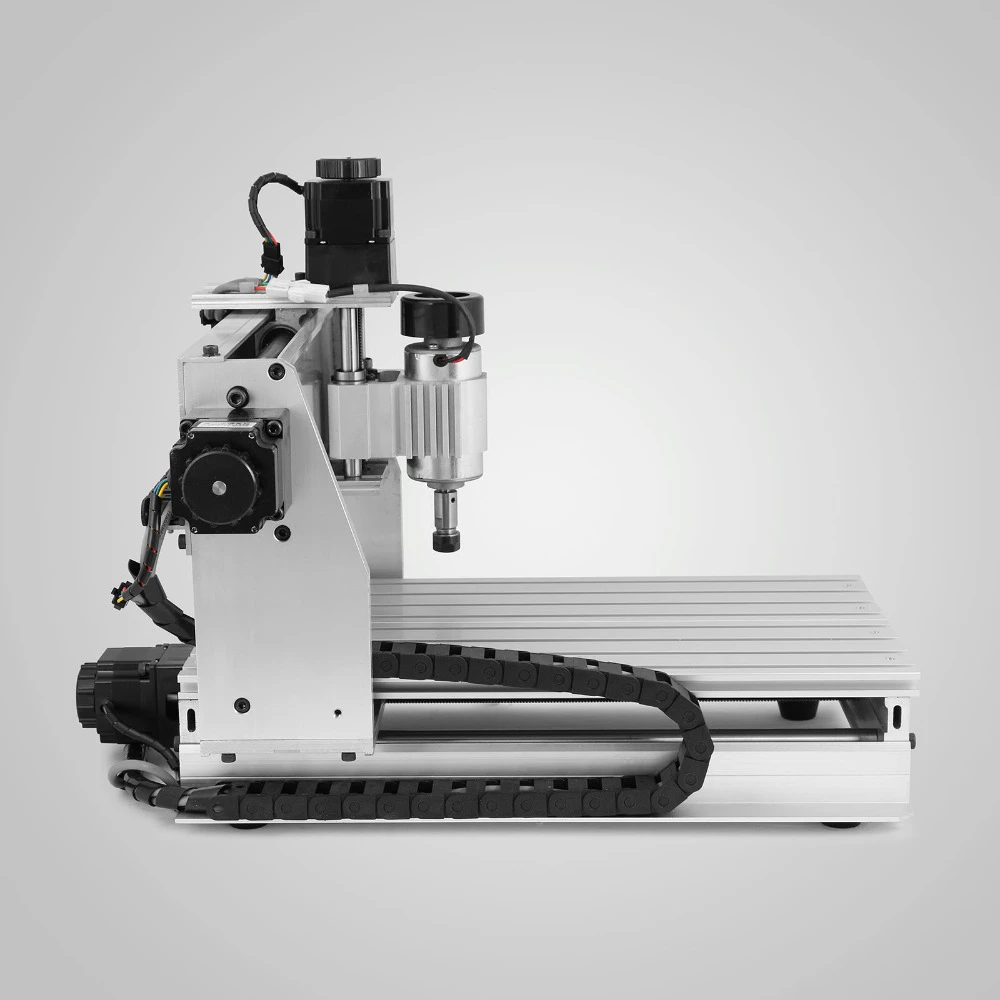

1. Compact High-Speed CNC Drilling & Milling Spindles Exclusively applied to small and lightweight high-frequency spindles for 3C precision processing, PCB micro-drilling and miniature mold engraving equipment. Its ultra-thin wall structure perfectly fits narrow spindle installation space that regular-size bearings cannot adapt to. With P5 precision and 15° contact angle, it balances high-speed operation and slight radial-axial composite loads, ensuring stable micro-hole machining accuracy and smooth surface finish for delicate electronic parts.
2. Miniature Industrial High-Speed Rotary Motors Specially matched for high-speed rotating shafts of compact servo motors and precision drive motors in automated production lines. Different from heavy-duty bearings, this model's low-inertia phenolic cage effectively reduces operating heat and vibration, supporting long-duration continuous high-speed operation of small power motors and guaranteeing consistent transmission precision.
3. Precision Testing & Laboratory Analytical Equipment Serves as the core support bearing for high-speed rotary components of laboratory centrifugal separators, spectral detection instruments and microscopic scanning devices. Its strictly controlled P5 dimensional tolerance minimizes rotary runout and mechanical jitter, avoiding detection data deviation and meeting the high stability requirements of precision experimental testing.
4. Light-Duty Precision Textile & Packaging Machinery Exclusive for high-speed rotary moving parts of intelligent textile looms, automatic quilting machines and high-speed packaging equipment. It adapts to frequent start-stop and continuous cyclic operation, with low noise and high operational stability, effectively improving equipment running efficiency and reducing daily maintenance frequency.
5. Medium-Precision Vacuum & Fluid Pump Equipment Applied to rotor support of small dry vacuum pumps and miniature centrifugal pumps used in industrial and laboratory environments. The phenolic cage delivers excellent heat resistance and self-lubricating performance, adapting to temperature rise during medium-high speed operation and maintaining stable sealing and rotating precision for long-term pump operation.
Advantages
HXB was founded in 1995, with nearly 30 years of dedicated development, HXB now operates6 subsidiaries.

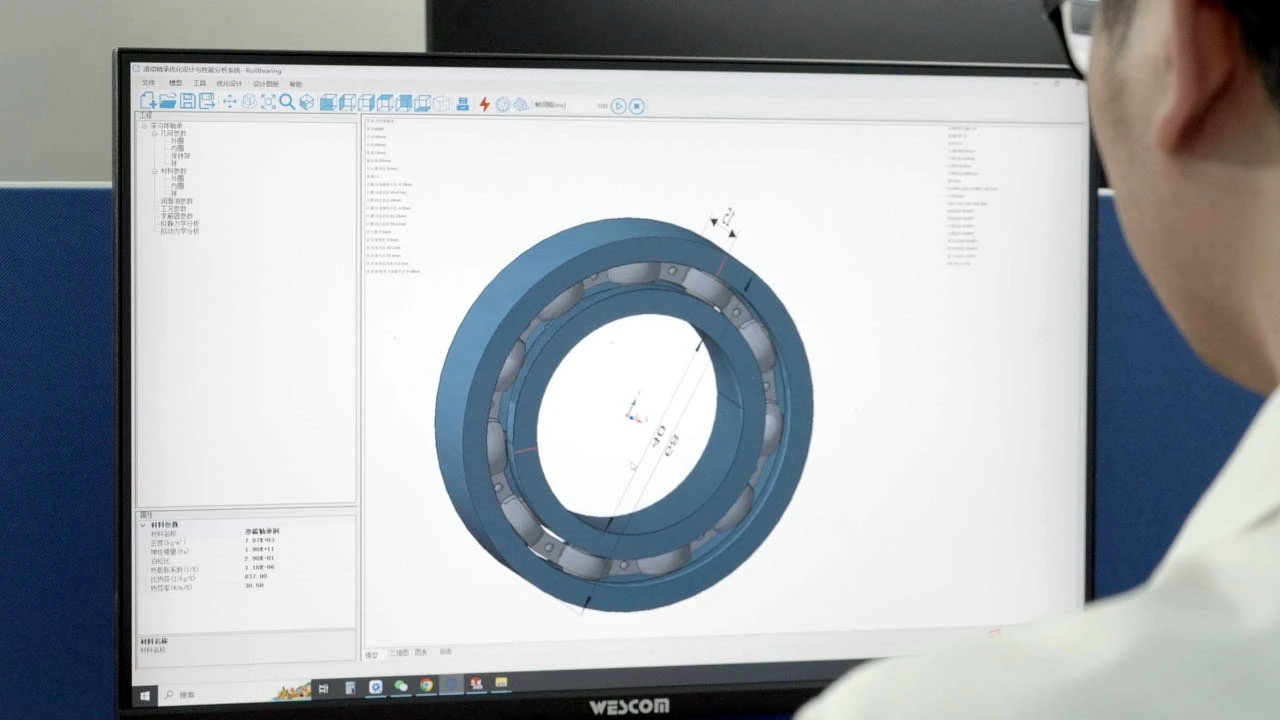

∗ 2 high-tech R&D centers

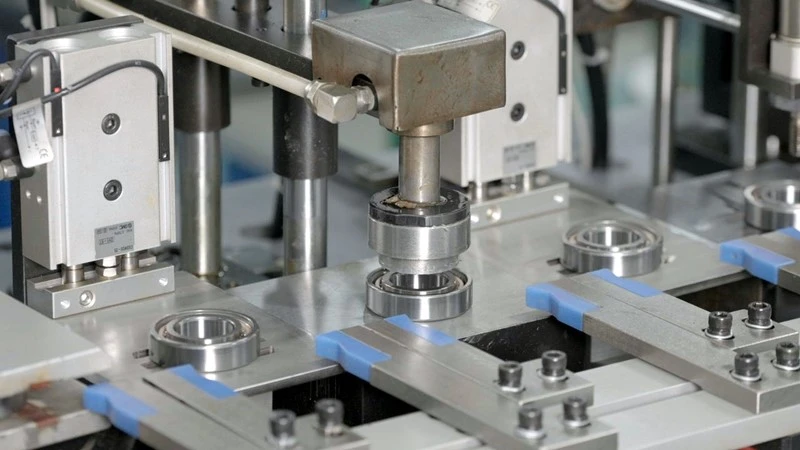

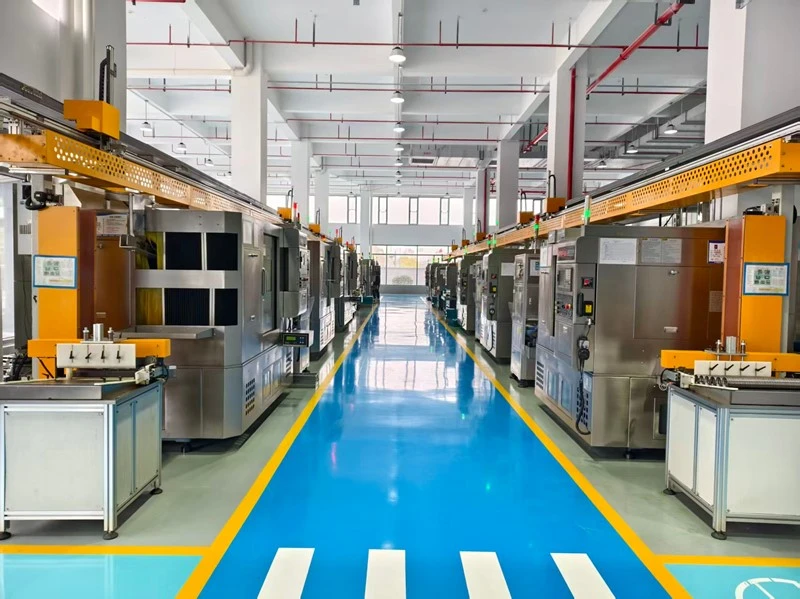

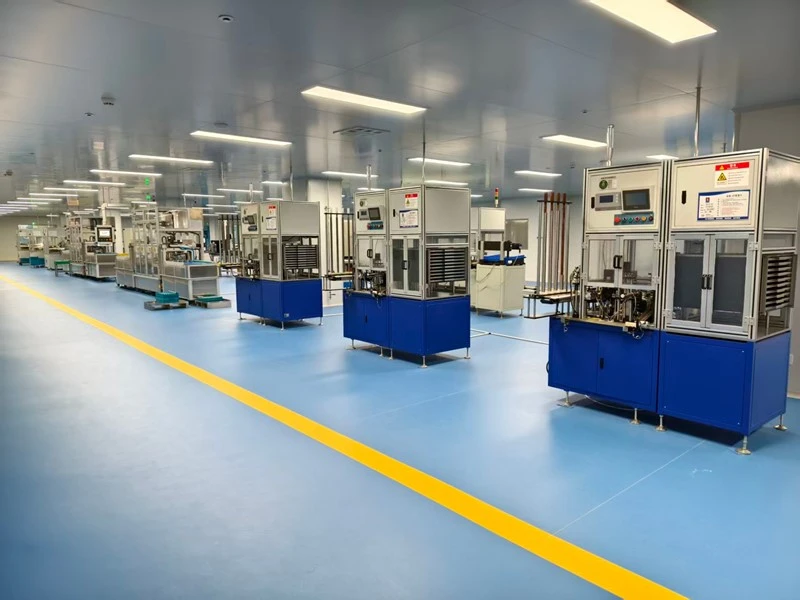

∗ 2 modern manufacturing factories - Hangzhou Yijia Precision Bearing Co., Ltd. and Zhejiang Ruiyang Bearing Technology Co., Ltd.

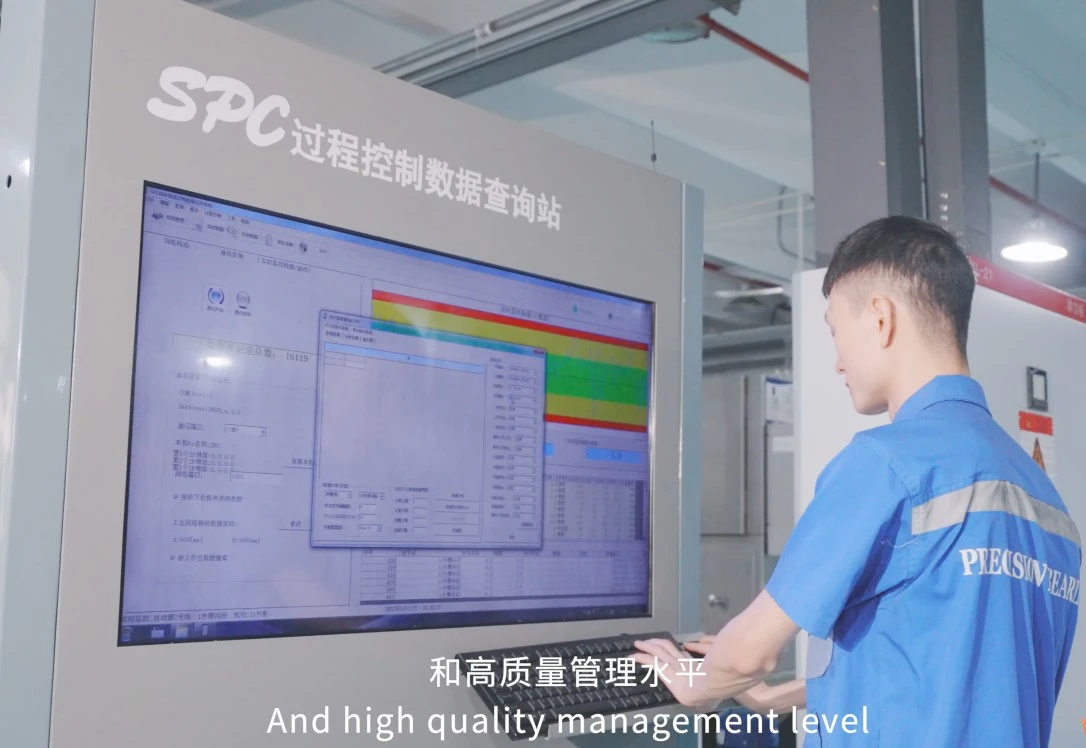

∗ Supported by advanced digital MES and SPC management systems
∗ IATF16949:2016, ISO9001:2015 and ISO14001 certifications

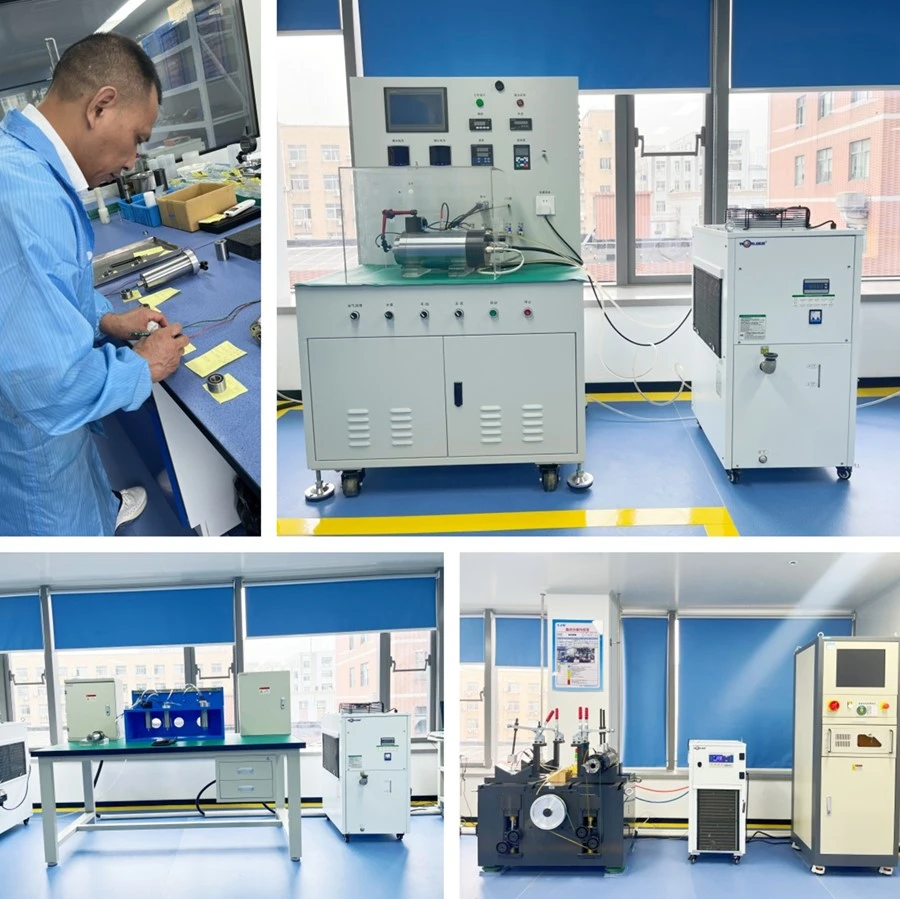

∗ High-end equipment and high-quality material
