Hangzhou Huaxing Kechuang Holding Group Co., Ltd. is one of the leading manufacturers and suppliers of ball screw support bearing 7602030tvp in China. As we have world-leading production equipment and strong manufacturing capabilities, we warmly welcome you to buy bulk high quality bearings at competitive price from our factory.

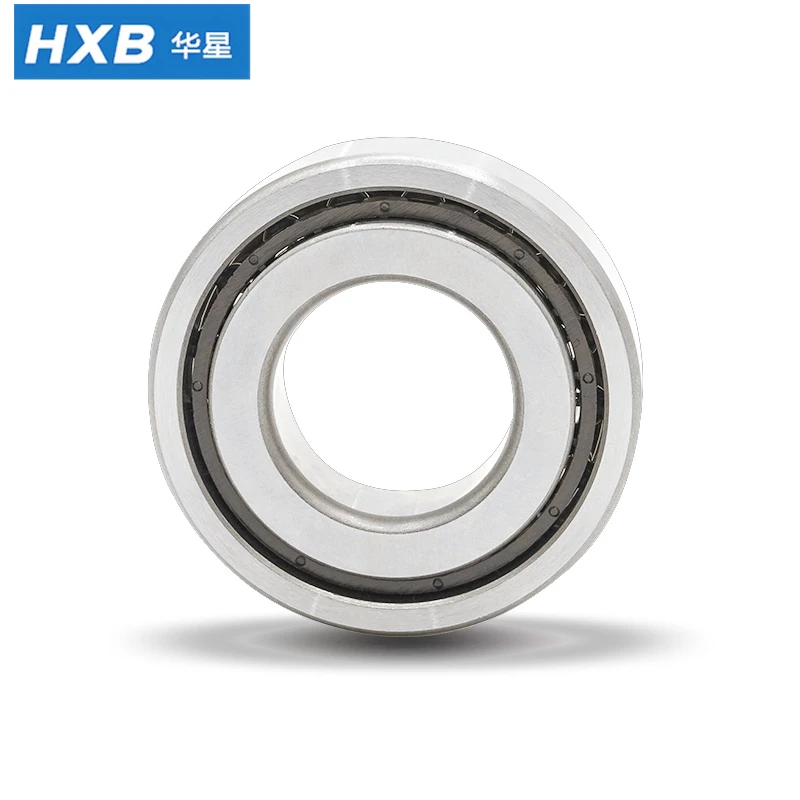

Angular Contact Thrust Ball Bearing-7602030TVP (30x62x16mm)
1. Basic Dimension Parameters
Model No.: 7602030TVP
Boundary size: Inner diameter d=30 mm, Outer diameter D=62 mm, Width B=16 mm
Contact angle: 60° (specialized for heavy axial thrust load)
Rolling element: Precision steel balls
Cage material: TVP modified nylon retainer
2. Structural Characteristics
Classified as angular contact thrust ball bearing; dual capacity for main axial load + auxiliary radial load
Large 60° contact angle delivers ultra-high axial rigidity to eliminate axial backlash after preloading
Lightweight nylon cage cuts rotational inertia, suppresses heat buildup and running noise during high-speed reciprocation
Super-finished mirror raceway reduces friction torque and rolling abrasion
Standard design supports DB / DF / DT paired preload assembly for ball screw installations
3. Core Performance Advantages
Excellent axial load capacity, stable under continuous axial thrust and instantaneous impact loads
Ultra-low axial deformation, guarantees micron-level positioning accuracy and repeatability
Balanced speed and rigidity performance, suitable for frequent start-stop and fast feed motion
Fine vibration damping capability to avoid mechanical resonance of precision equipment
Good heat resistance and anti-fatigue property for long-cycle continuous operation
4. Applicable Equipment
Medium-sized CNC lathes, grinding machines and vertical machining centers
Precision ball screw linear feed systems
Automated sliding tables, laser processing equipment
Inspection positioning platforms and small automated actuators
5. Optional Configurations
Open type / non-contact DDG sealed type for dust and coolant isolation
Pre-filled long-life high-temperature low-noise grease for maintenance-free operation
Multiple precision grades (P4 / PN7B) to match different accuracy requirements
6. Core Application Definition
Structural name: Angular Contact Thrust Ball Bearing Common alias: Ball Screw Support Bearing, designed exclusively for supporting ball screw drive shafts of precision automation and machine tools
Advantages
HXB was founded in 1995, with nearly 30 years of dedicated development, HXB now operates6 subsidiaries.
∗ 2 high-tech R&D centers
∗ 2 modern manufacturing factories - Hangzhou Yijia Precision Bearing Co., Ltd. and Zhejiang Ruiyang Bearing Technology Co., Ltd.
∗ Supported by advanced digital MES and SPC management systems
∗ IATF16949:2016, ISO9001:2015 and ISO14001 certifications
∗ High-end equipment and high-quality material
Certificates
Exhibition
FAQ
Q1: What is your annual production capacity?
A: Our annual output of deep groove ball bearings reaches 3 million sets, with stable mass production capacity for high-precision spindle bearings and ceramic hybrid bearings.
Q2: Do you have a professional R&D and quality team?
A: We have a complete engineering R&D team and independent quality team, responsible for product upgrading, process optimization and strict quality control.
Q3: What is your minimum order quantity?
A: Small trial orders and sample orders are acceptable. Bulk orders enjoy more favorable wholesale prices.
Q4: What is your production lead time?
A: Standard models have sufficient stock with fast delivery. Customized bearings take 7–15 working days according to order quantity and technical requirements.
Q5: Can you support mixed batch ordering?
A: Yes, we support mixed loading of different models and specifications to meet diversified procurement needs.
Hot Tags: ball screw support bearing 7602030tvp, China ball screw support bearing 7602030tvp manufacturers, suppliers, factory
