Hangzhou Huaxing Kechuang Holding Group Co., Ltd. is one of the leading manufacturers and suppliers of angular contact thrust ball bearing 30tac62bdgg in China. As we have world-leading production equipment and strong manufacturing capabilities, we warmly welcome you to buy bulk high quality bearings at competitive price from our factory.

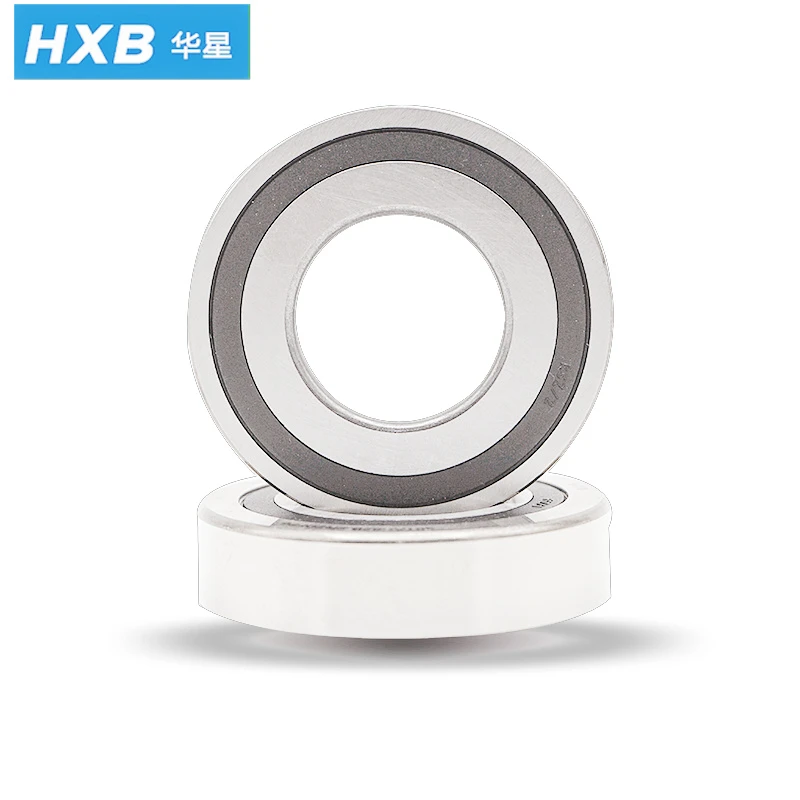

Angular Contact Thrust Ball Bearing-30TAC62BDGG 25TAC62BDGG
Specifications
|
Dimension: |
30x62x15mm |
|
Bearing Type: |
Thrust angular contact ball bearing (60°) - Ball screw support bearing |
|
Part No.: |
BSB030062-T (FAG), BSD3062C (SKF), BST30*62-1B LXL |
|
Vibration: |
ZV2, ZV3 |
|
Precision Class: |
P5, P4, ABEC-5, ABEC-7 |
|
Arrangement: |
DB/DT/DF/SU/TFT/TBT/QBC/QBT |
The 30TAC62BDGG is a dedicated 60° angular contact thrust ball screw bearing with standardized 30×62×15mm dimension specification. Crafted from premium vacuum-refined GCr15 bearing steel, it undergoes ultra-precision raceway grinding and strict tolerance calibration to achieve P4/P5 high precision grade. Its exclusive 60° contact angle structure delivers dominant axial load resistance and rigid directional support, perfectly matching the unidirectional thrust characteristics of ball screw transmission. The optimized internal ball arrangement achieves even stress distribution, effectively suppressing micro deformation under sustained dynamic load. Matched with high-stability anti-deformation structural design, this model maintains consistent rotational accuracy and low runout performance during long-term high-frequency cyclic operation, with excellent resistance to mechanical fatigue and thermal drift. The sealed BDGG configuration locks internal lubrication steadily, preventing dust intrusion and lubricant deterioration to extend continuous service cycles.
Features
| Code Segment | Definition Label |
|---|---|
| 30 | Bore diameter |
| TAC | Bearing type symbol |
| 62 | Outer diameter |
| B | Internal design symbol |
| DDG | Seal symbol |
| SU | Arrangement symbol |
| C10 | Preload symbol |
| PN7B | Accuracy symbol |
Detailed Definition of Each Code
30 → Bore diameter Bore diameter (mm)
TAC → Bearing type Angular contact thrust ball bearing; 60° contact angle
62 → Outer diameter Outer diameter (mm)
B → Internal design Internal structural design code
DDG → Seal DDG: non-contact rubber seal ⁽¹⁾
SU → Arrangement SU: universal arrangement (single row) / DU: universal arrangement (double row)
C10 → Preload C10: standard preload / C9: light preload (low torque specification)
PN7B → Accuracy PN7A: standard accuracy (equivalent to ISO Class 4) PN7B: special accuracy (Bore diameter and outside diameter are exclusive to NSK, Equivalent to ISO Class 4; for SU arrangement only.)
| Bearing Numbers | Dynamic Load Rating Ca (kN) | Limiting Axial Load⁽²⁾ (kN) | Mass (kg) (approx) |
||||
| Single Row Load DF, DB |
Double Row Load DT, DFD, DBD, DFF, DBB |
Triple Row Load DTD, DFT, DBT |
Single Row Load DF, DB |
Double Row Load DT, DFD, DBD, DFF, DBB |
Triple Row Load DTD, DFT, DBT |
||
| 15 TAC 47BDDG | 21.9 | 35.5 | 47.5 | 26.6 | 53 | 79.5 | 0.144 |
| 17 TAC 47BDDG | 21.9 | 35.5 | 47.5 | 26.6 | 53 | 79.5 | 0.144 |
| 20 TAC 47BDDG | 21.9 | 35.5 | 47.5 | 26.6 | 53 | 79.5 | 0.135 |
| 25 TAC 62BDDG | 28.5 | 46.5 | 61.5 | 40.5 | 81.5 | 122 | 0.252 |
| 30 TAC 62BDDG | 29.2 | 47.5 | 63 | 43 | 86 | 129 | 0.224 |
| 35 TAC 72BDDG | 31 | 50.5 | 67 | 50 | 100 | 150 | 0.31 |
| 40 TAC 72BDDG | 31.5 | 51.5 | 68.5 | 52 | 104 | 157 | 0.275 |
| 40 TAC 90BDDG | 59 | 95.5 | 127 | 89.5 | 179 | 269 | 0.674 |
| 45 TAC 100BDDG | 61.5 | 100 | 133 | 99 | 198 | 298 | 0.842 |
-
Applications
- Heavy-Duty Industrial Rotary & Lifting Equipment
- Engineered to withstand extreme working conditions with heavy downward thrust, these bearings are widely deployed in heavy-duty industrial equipment, including large indexing tables, oilfield rotary tables and high-speed vertical motors. Thanks to the exclusive 60° large contact angle design, the bearings possess exceptional axial thrust resistance and structural durability. The optimized internal structure evenly disperses high axial pressure and alternating impact loads, effectively avoiding structural fatigue, deformation and early failure under long-term heavy-load operation, greatly improving the reliability and service life of heavy rotary and vertical transmission equipment.
- High-Speed Vertical Motor & Servo Transmission Equipment
- Perfectly suited for high-speed vertical motors and precision servo drive systems, these bearings feature low friction, ultra-low vibration and excellent dynamic stability. They reliably resist continuous axial tension and downward thrust generated during high-frequency shaft rotation, maintaining consistent shaft precision and smooth operation with minimal noise and vibration. They are widely adopted in high-speed vertical servo motors, precision drive motors and automated power equipment,supporting high-response, high-stability and high-precision motor operation.
Advantages
HXB was founded in 1995, with nearly 30 years of dedicated development, HXB now operates6 subsidiaries.
∗ 2 high-tech R&D centers
∗ 2 modern manufacturing factories - Hangzhou Yijia Precision Bearing Co., Ltd. and Zhejiang Ruiyang Bearing Technology Co., Ltd.
∗ Supported by advanced digital MES and SPC management systems
∗ IATF16949:2016, ISO9001:2015 and ISO14001 certifications
∗ High-end equipment and high-quality material
About HXB
1. Hangzhou Factory - YJB
YJB features a full-range precision bearing production system with flexible size coverage and top-tier precision standards. The factory manufactures precision bearings with inner diameters ranging from Φ3mm to Φ300mm, supporting ultra-high precision grades of P2 and P4 to meet stringent requirements of high-precision equipment.
Adopting lean production and intelligent manufacturing modes, YJB achieves an annual output of 3 million sets of high-precision bearings. To guarantee consistent product accuracy and stability, the factory has invested over RMB 3 million in advanced international precision testing and inspection equipment, realizing full-process precision detection and quality verification.
Main Products
Precision Spindle Bearings
Angular Contact Ball Bearings
Servo Motor Bearings
Vacuum Pump Bearings
Ball Screw Support Bearings

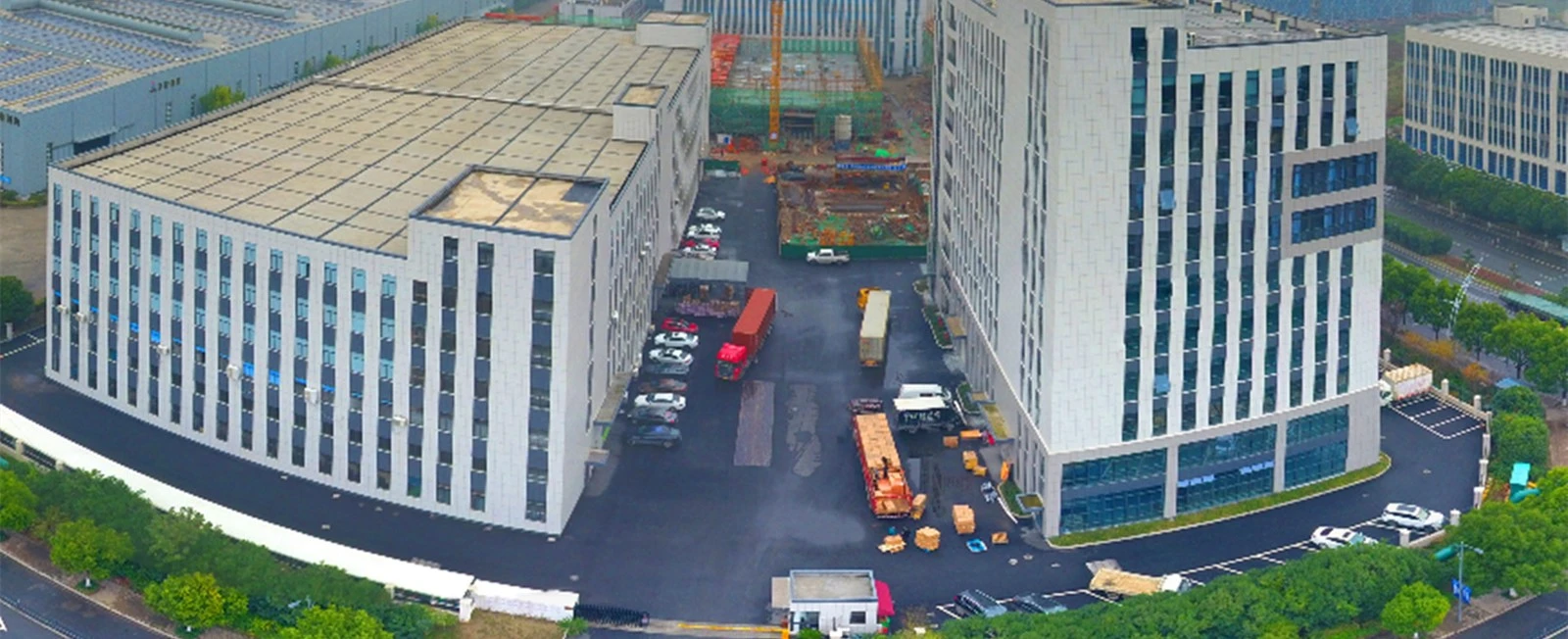

2. Huzhou Factory
In 2021, the deep groove ball bearing factory relocated from Hangzhou to Huzhou. It operate in a 10,000㎡ production facility with a team of 75 employees, focused on the R&D, and manufacturing of high-performance deep groove ball bearings.
We maintain a professional engineering and quality system to ensure stable precision and reliability.
Product Range
Series: 6000–6024, 6200–6214, 6300–6314, 6800–6824, 6900–6924
Features: High rigidity, low noise; suitable for grease lubrication or oil-mist lubrication.
6 Series X4YA-2RS (Double-lip seal) & APT Retainer Series
Features: High & low temperature resistance, superior sealing, high load capacity, long service life.
Application: New energy vehicle transmission systems.
Certificates
Exhibition
FAQ
Q1: Do you support customized bearing solutions?
A: Yes. We support custom size, clearance, grease, sealing type, surface treatment and logo printing according to customer drawings and application scenarios.
Q2: Can you develop exclusive bearings for new energy vehicles?
A: We have independent R&D capabilities for new energy vehicle bearings, covering motor, reducer and electric control system bearing customization and mass production.
Q3: Do you provide OEM / ODM service?
A: OEM and ODM services are available. We can produce according to your brand packaging, specifications and technical standards.
Q4: What is your return policy?
A: Within the valid warranty period, if the product fails to meet the stipulated quality standards or cannot work normally due to inherent manufacturing quality problems (excluding human damage and improper use), the product shall be covered by free warranty service.
Q5: What are ball screw support bearings, and how do they differ from ordinary bearings?
A: Ball screw support bearings are specialized precision bearings designed exclusively for linear transmission systems. Unlike standard bearings focused on simple rotary movement, they are engineered to withstand high axial loads, maintain minimal axial runout, and sustain rigid positioning. They deliver superior rigidity and repeat accuracy to match high-precision linear motion demands of automation and machine tools.
Q6: What precision grades are available for ball screw support bearings?
A: They are available in multiple precision levels including P0, P6, P5 and P4. Higher-grade models feature stricter dimensional tolerance, lower runout error and better consistency, fully meeting high-end precision machining and ultra-precision positioning requirements.
